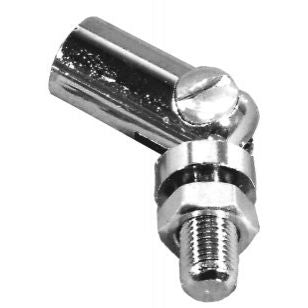

Swivel Mount CB Antenna Stud
$12.95
- Stainless steel and 2 3/8" tall
- Compatible with all PL-259 barrel-style coax connections
This Swivel Mount CB Antenna Stud easily spins into action - Whether your CB is on the road or at home, this swiveling stud will have you tuned in to the best channels in no time.
Model / SKU: | JBC100 |
Recommended for: | All-purpose CB use for antennas 3' and shorter. For antennas longer than 5', use a heavy-duty stud or ball mount. |
Compatible with: | Accepts all fiberglass and center-load antennas with a 3/8" x 24 thread. SO-239 connection on the bottom is compatible with coax that has PL-259 barrel-style ends. Designed for 1/2" stud holes, which are the industry standard on all CB mounts. |
Installation Notes: | It's crucial to install the nylon washer between the metal mounting surface and the top antenna nut. If not, a short will occur. See stud washer troubleshooting for more information. If installing on a flat surface without a mount, a 1/2" hole should be drilled. |
Mount Location: | Other |
Stud Type: | PL-259 (Barrel) |
Material: | Stainless Steel |
Warranty: | One year |
Product Includes: | Stud mount Antenna, mount and coax not included |
The importance of the stud mount cannot be overstated. The antenna stud mount acts as a bridge between the antenna and the coaxial feed line. Accordingly, it needs to allow for efficient transfer of your signals to and from the transceiver. If the stud mount doesn't perform that task efficiently, you end up with unneeded loss. If that isn't enough, the stud mount must be strong enough to withstand the stress from an antenna subject to severe wind load and vibration. In heavier-duty applications, adding a lock washer and nut may increase hold.
