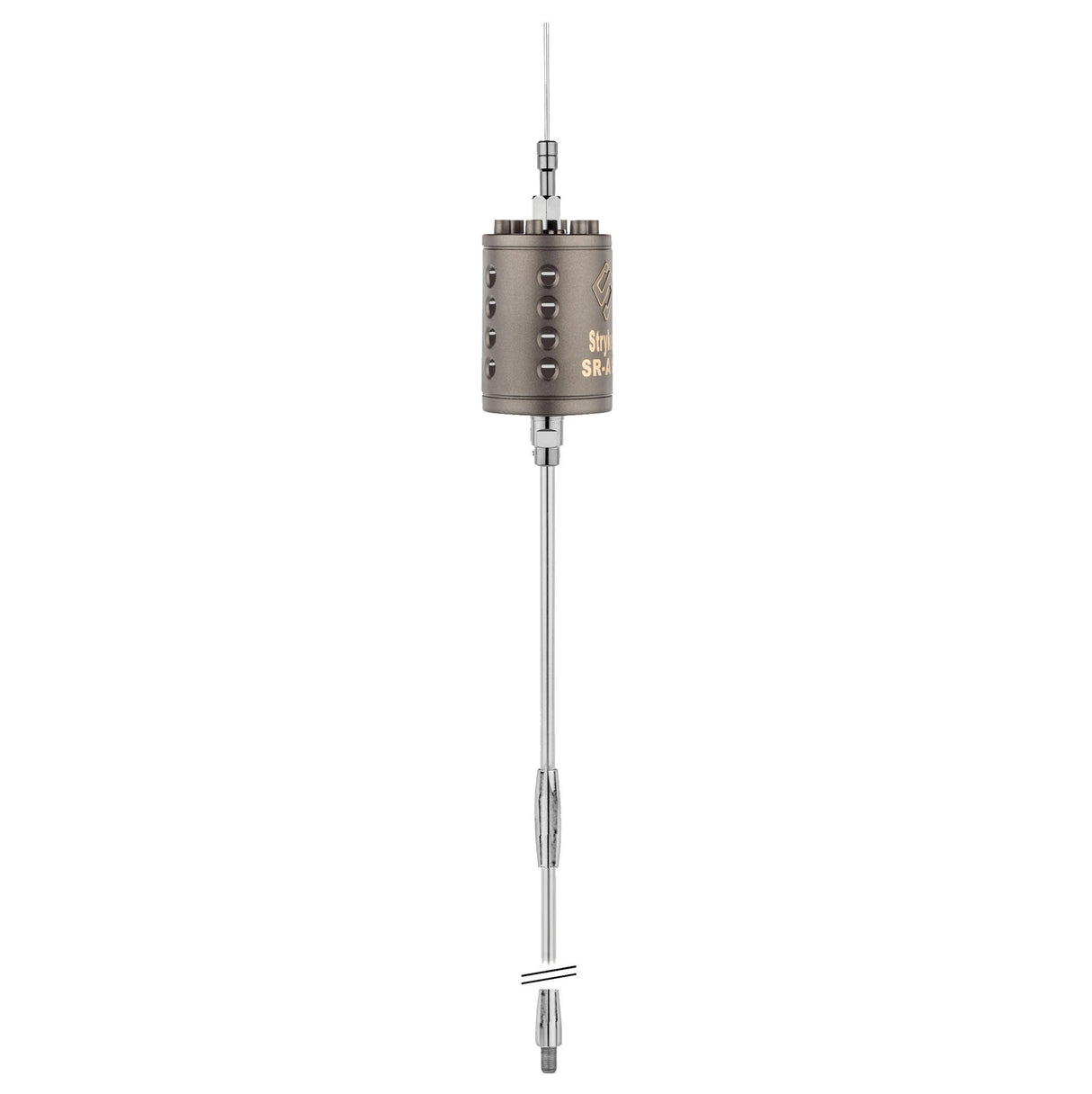

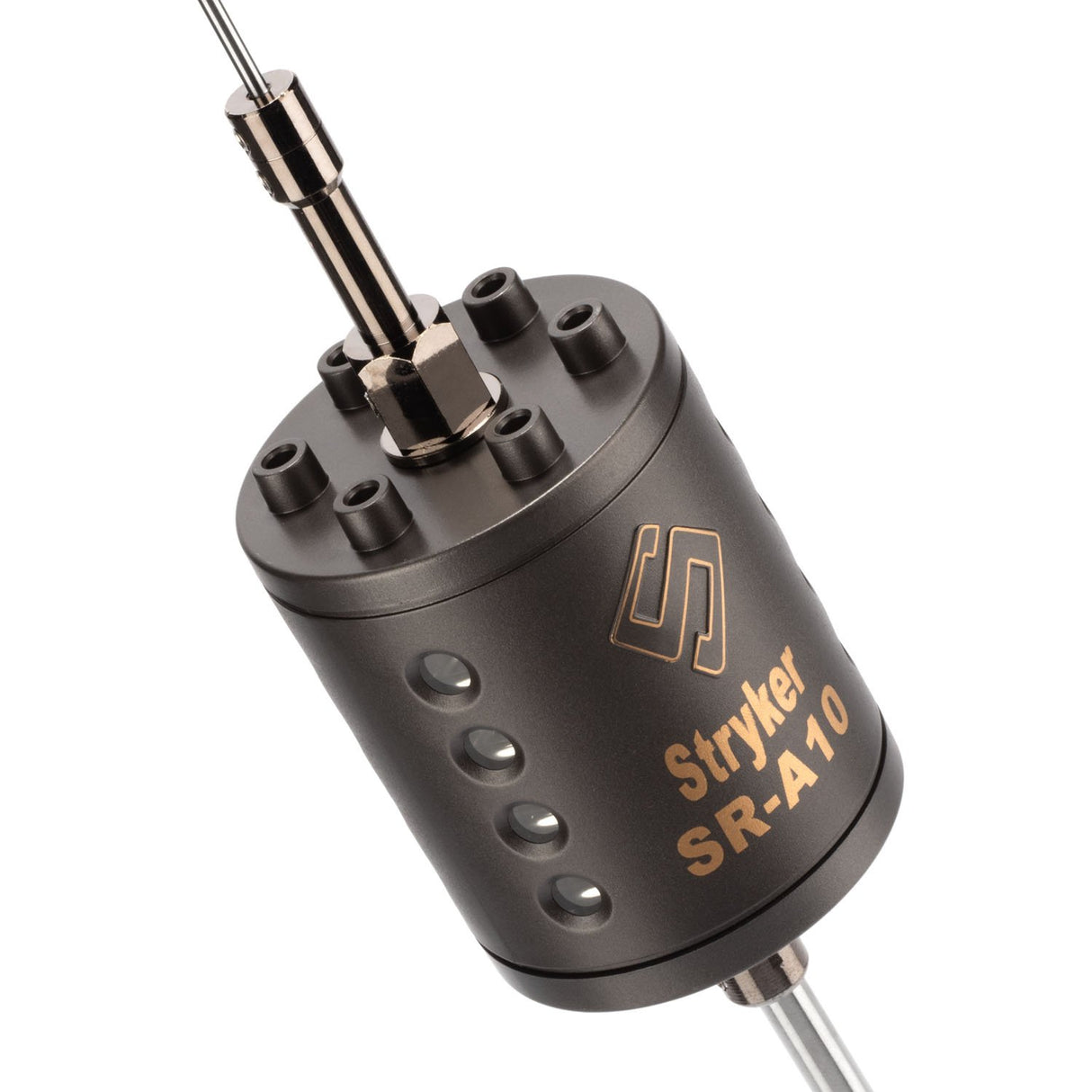

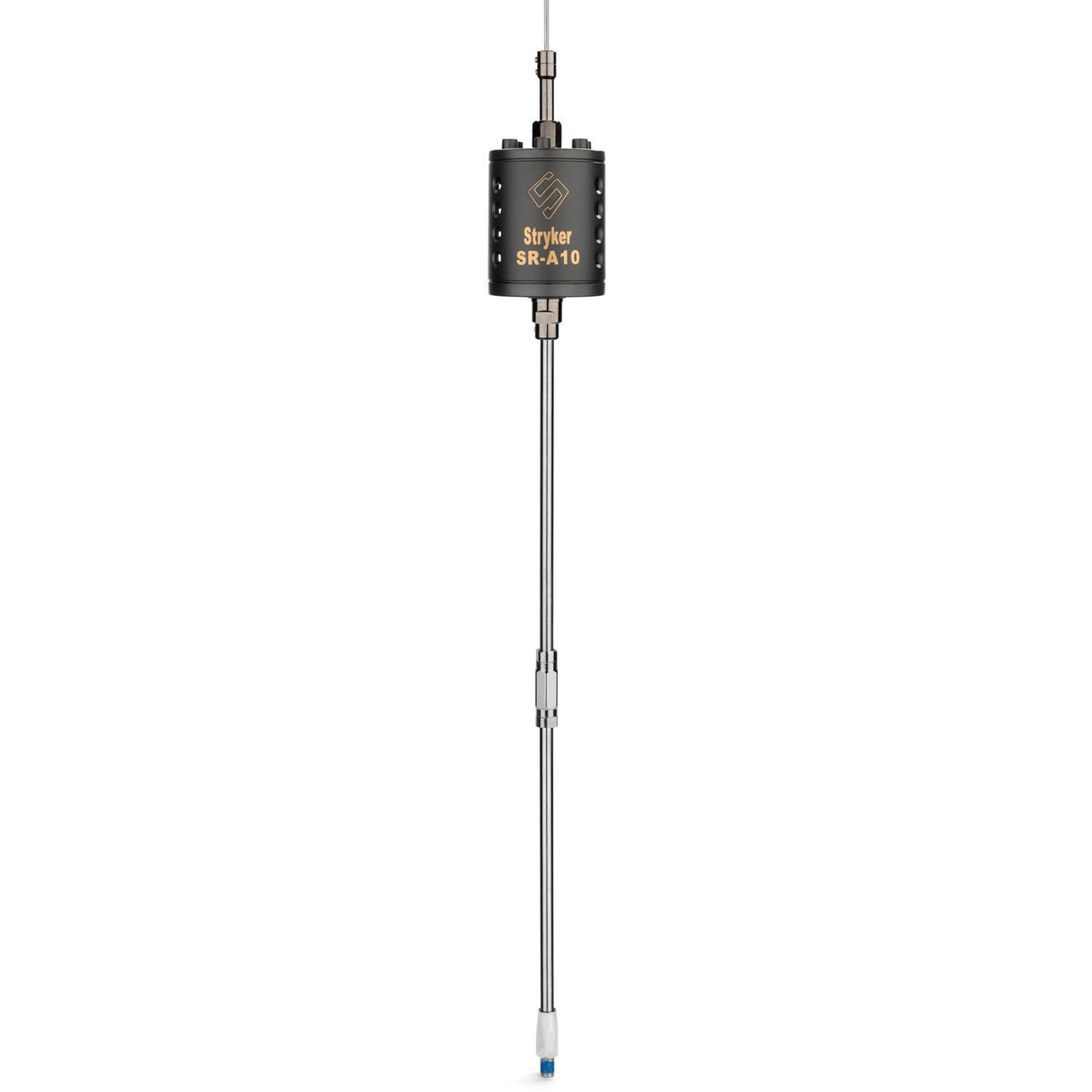

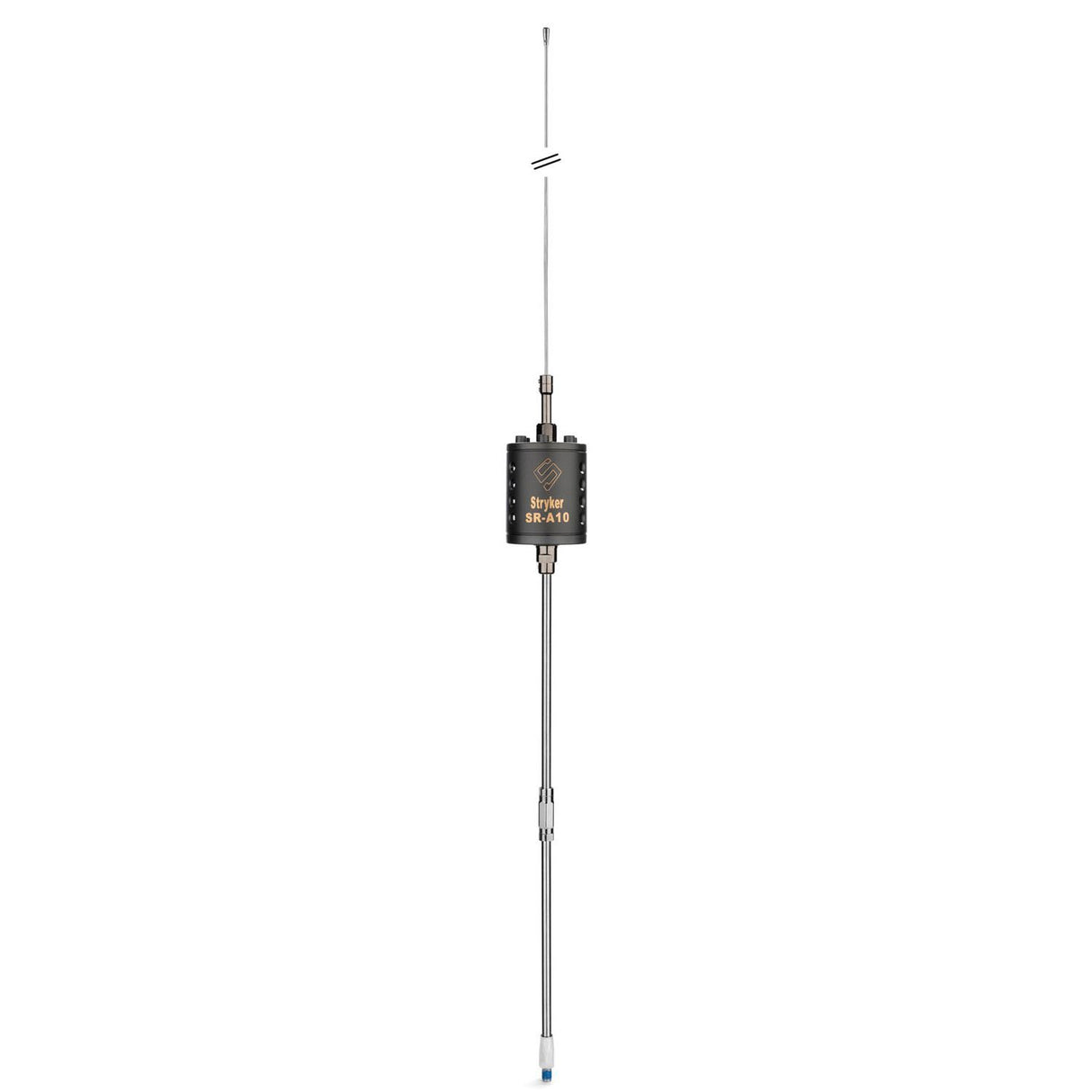

Stryker SRA 10/20 Trucker Antenna
- Built for professional drivers looking for a maximum range
- Includes parts for a 10" or 20" stainless steel lower shaft & 49" whip
Stryker products are known for rugged reliability and the center-load SRA-1020 is no different. Uniquely designed to be used with either a 10" or 20" lower shaft, the SRA 1020 includes two 10" stainless steel lower shafts along with a coupler to connect both shaft pieces together for a 20" shaft if needed. Use the longer shaft if you need the length to get the antenna coil over the roofline, or if you just want the antenna coil to be higher in the air. This is a wide band antenna that easily covers both 10 and 11 meter bands, 26.965 - 30 Mhz. Other notable features are the double waterproof coil cover, 10,000 watt rating, and 6 gauge silver plated coil.
|Model / SKU:||SRA1020|
|Recommended for:||Professional drivers who need a reliable, top-performing antenna. Most commonly mounted on semi trucks and commercial equipment, but can also be used on pick-up trucks with a heavy-duty mount.|
|Notable Features:||10,000 watt rating, dual 10" shafts that can be connected for a 20" shaft, Stainless Steel Construction, Weather proof coil cover|
|All standard 2/8 x 24 CB mounts & antenna studs. Due to the antenna's length and weight, we highly recommend a strong mount such as a heavy-duty mirror bar or 3-way mount|
|Black coil and stainless steel shaft|
|These are approximate ranges provided for comparison purposes only and are subject to numerous installation and environmental variables. For more detailed information, please see our reference article on CB Antenna Range Approximation.|
|Product Includes:||54" center load antenna with adjoining 10" shafts|
Mount and coax not included
Stryker SRA-1020 10,000 watt wide band center load 10/11 meter antenna is tunable for 26.965-30 Mhz band coverage. Features weather channel ready, a 6 gauge silver plated loading coil, double wall waterproof coil cover, air-wound outer coil is constructed of high impact mobay thermoplastic for ultimate absorption of vibration and protects antenna from harsh elements. Unique design reduces static interference. The heavy duty coil construction along with an adjustable stainless steel adjoining shaft and 49" stainless steel whip will provide years of trouble free service. 2 year factory warranty.
I haven’t yet setup an antenna yet, I have a 2008 Mustang and I am not sure where to mount it unless I drill a hole just north of the rear window. I’m still waiting for some mounting hardware and thinking of mounting the radio on the dash without drilling holes that’ll be visible. I’m happy for finally finding someone who sells the Stryker and I’ll be gifting the other one to my brother in Ontario. Thank you Right Channel Radios.
Awesome antenna. I used both 10" shafts and had to only cut about 4 inches to get a perfect match. I mounted it on the Ford F350 mount, also from RCR. It replaced a Wilson 5000 mag mount that I could never really get matched. RCR has the best prices and FAST shipping!
I like this antenna a ton. Upon hooking up, SWR was perfect without needing any changes. I only used one of the 10” masts. Signal TX range not yet tested but easily receiving 10+ miles away in hilly terrain. The light is also, despite a gimmick, really cool! Perfect compromise mid-point between a 102” whip and smaller 3 or 5’ option.
The Dosy trucker 1000 an the sra10 Stryker antenna was a great match with my Stryker 497hpc my swrs are below a 1.1 on all 40 channels thanks again RcR for the great prices
My second Stryker antenna . No problems , love it .
