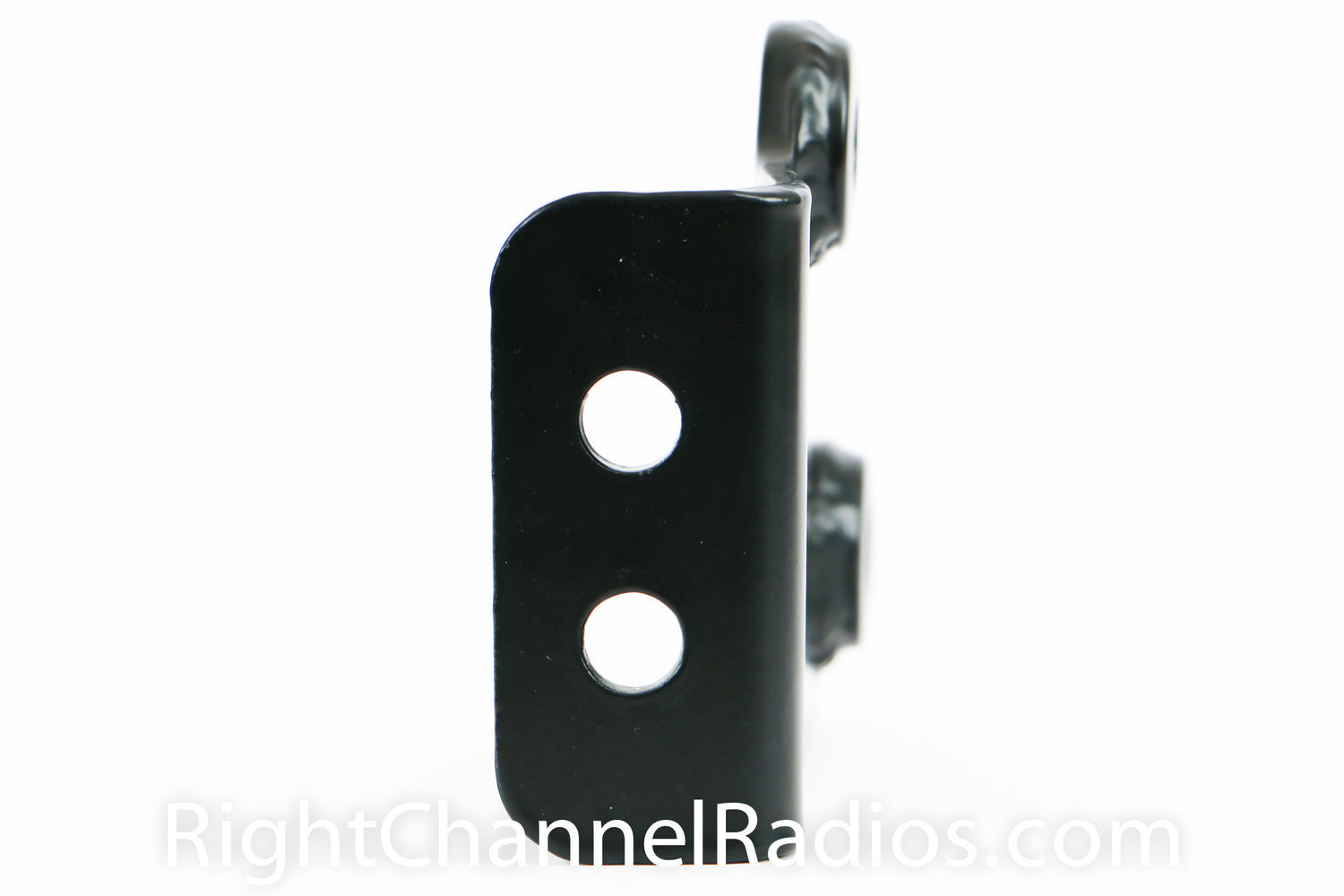

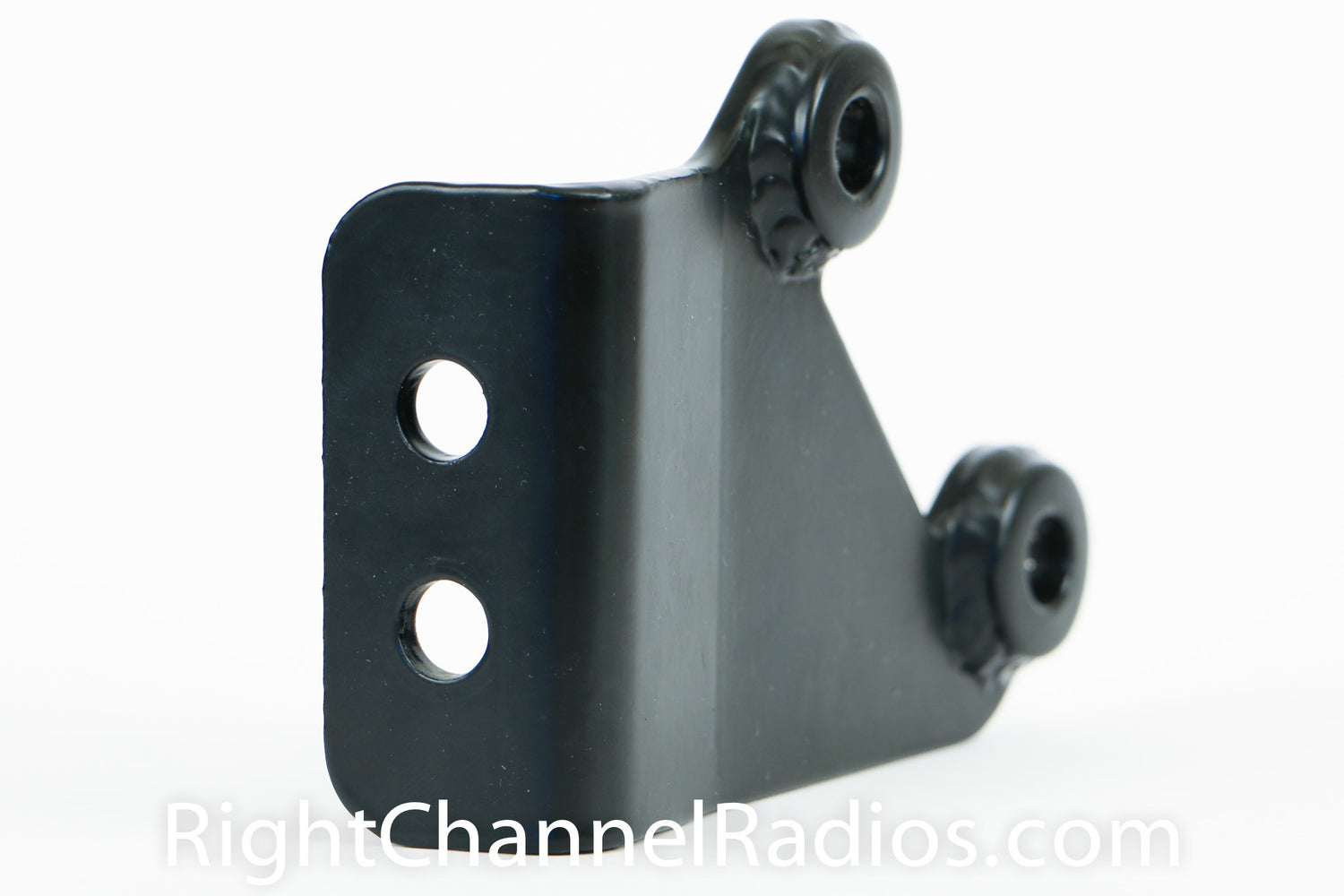

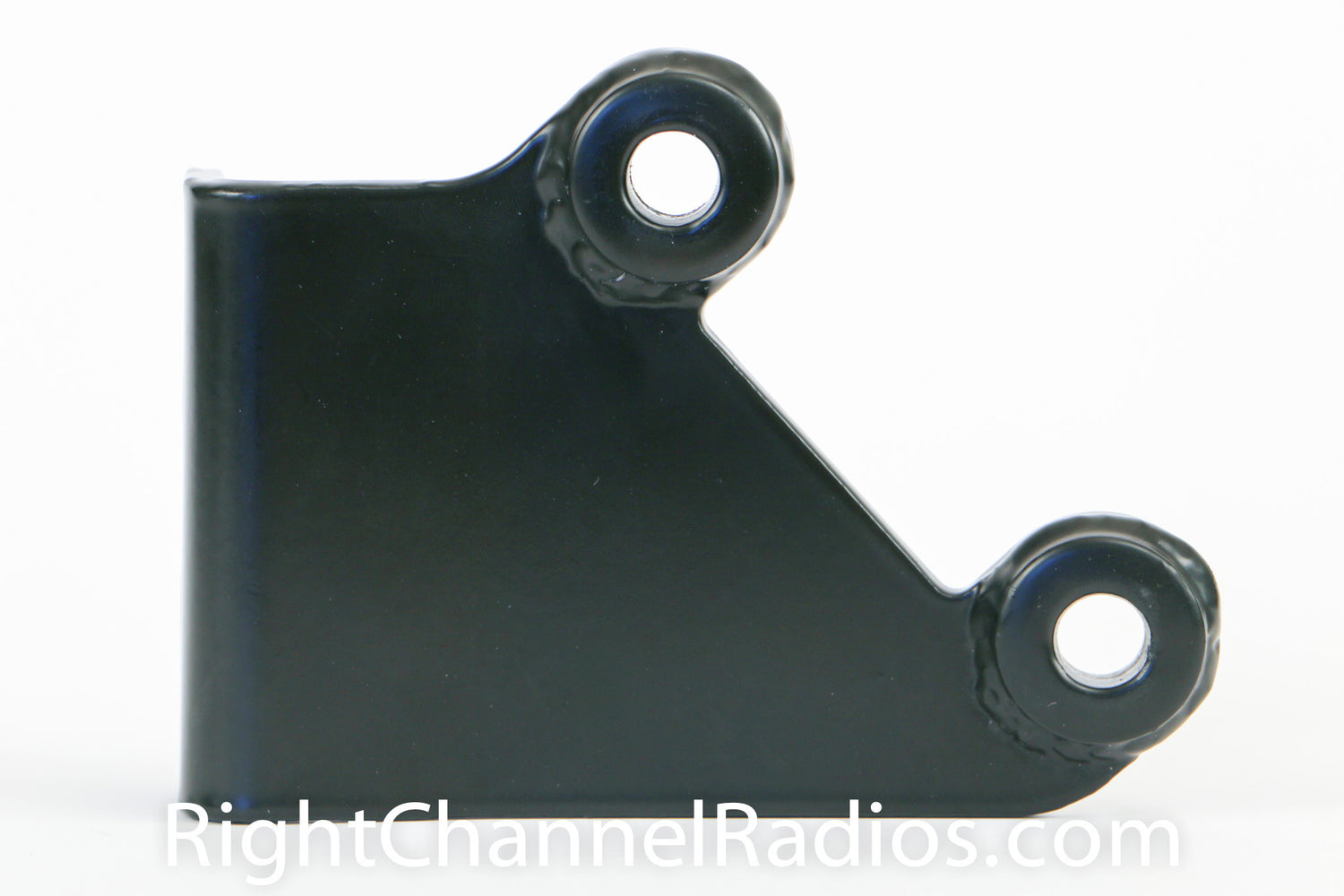

Teraflex JK Jeep Wrangler CB Spare Tire Mount Best Seller


  • Mounts to the existing spare tire assembly for a professional, easy, no-drill install on your JK
  • CheckFree Shipping over $99*
  • CheckIncludes Installation Resources
  • CheckHassle-Free Returns

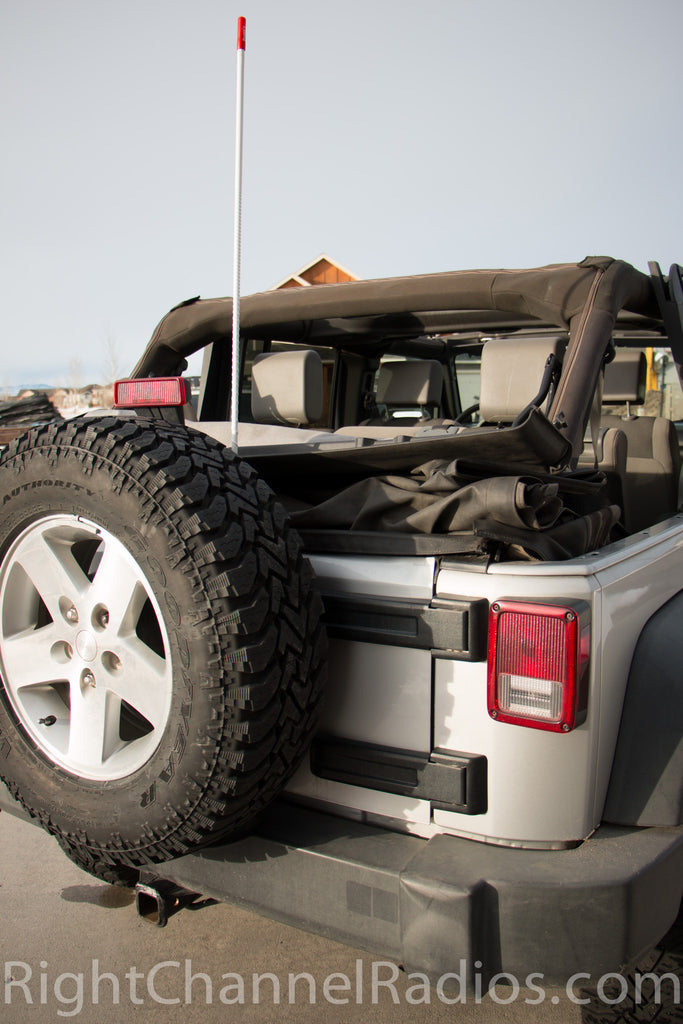

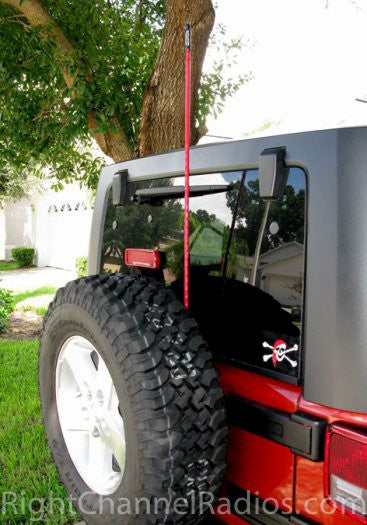

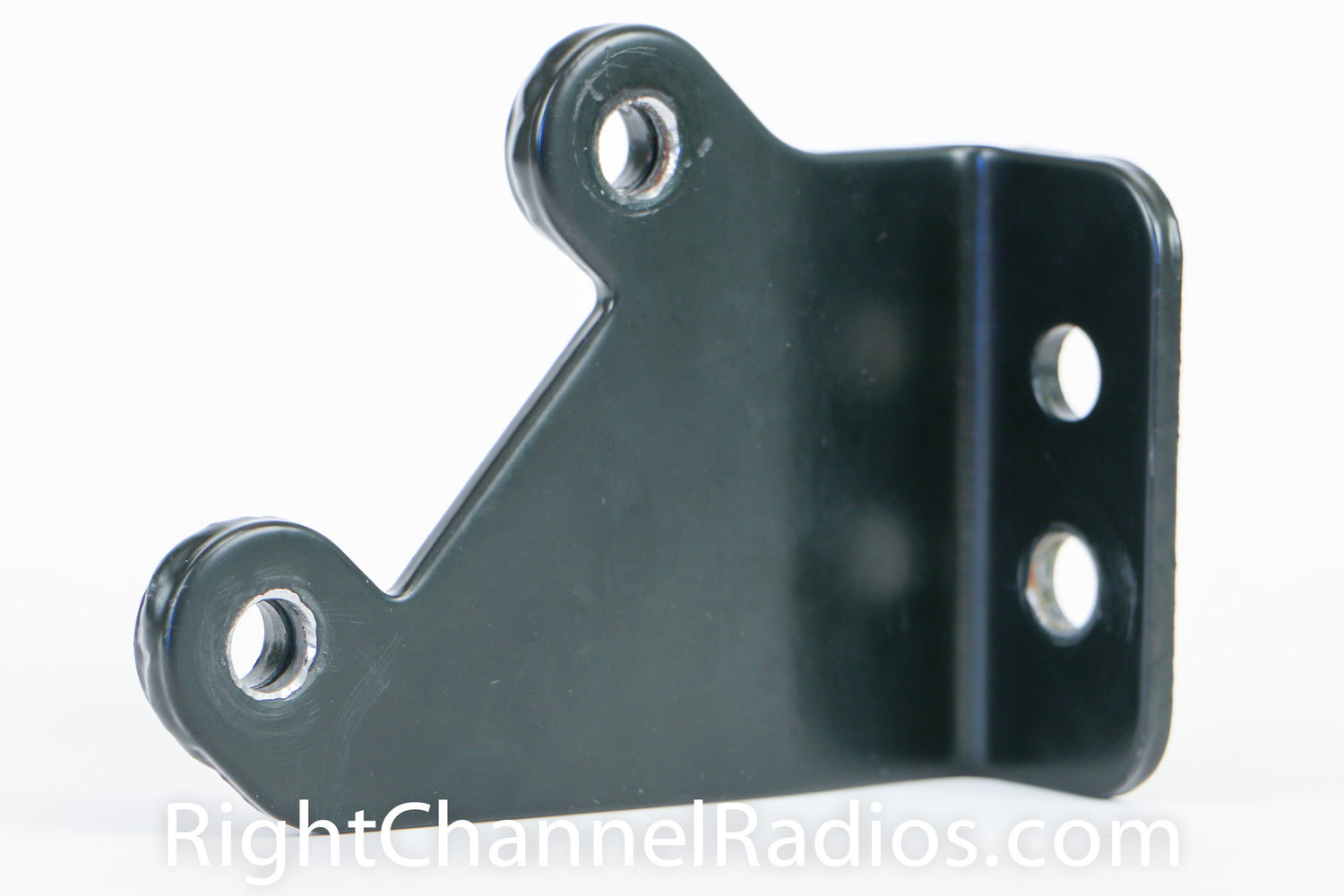

This is, hands down, the most popular mount we offer to JK owners. Easy on the eyes and super strong, this mount has a powder coated finish and is ready for the trails less traveled. Install on your spare tire carrier using the existing bolt holes to achieve that factory installed look. Compatible with all JK Wranglers, including Rubicon and Unlimited models. Antenna stud sold separately.

Installing a complete CB system in your Jeep? This mount is included in our complete Jeep JK CB Radio Kit.

Model / SKU:Teraflex 997190
Recommended for:
JK Wrangler owners who want a clean, professional CB antenna installation that's easy to achieve.
Compatible with:Compatible with JK Jeep Wranglers, including Rubicon and Unlimited models. Combined with an antenna stud, the mount will support all fiberglass and center-load antennas that use a standard 3/8" x 24 threaded base.
Installation Notes:

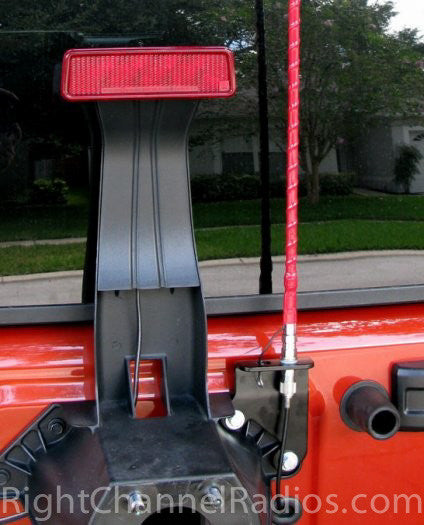

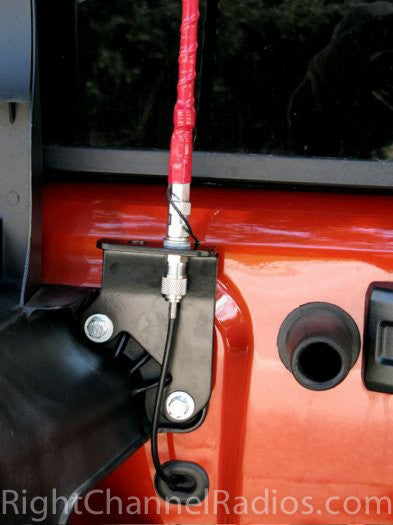

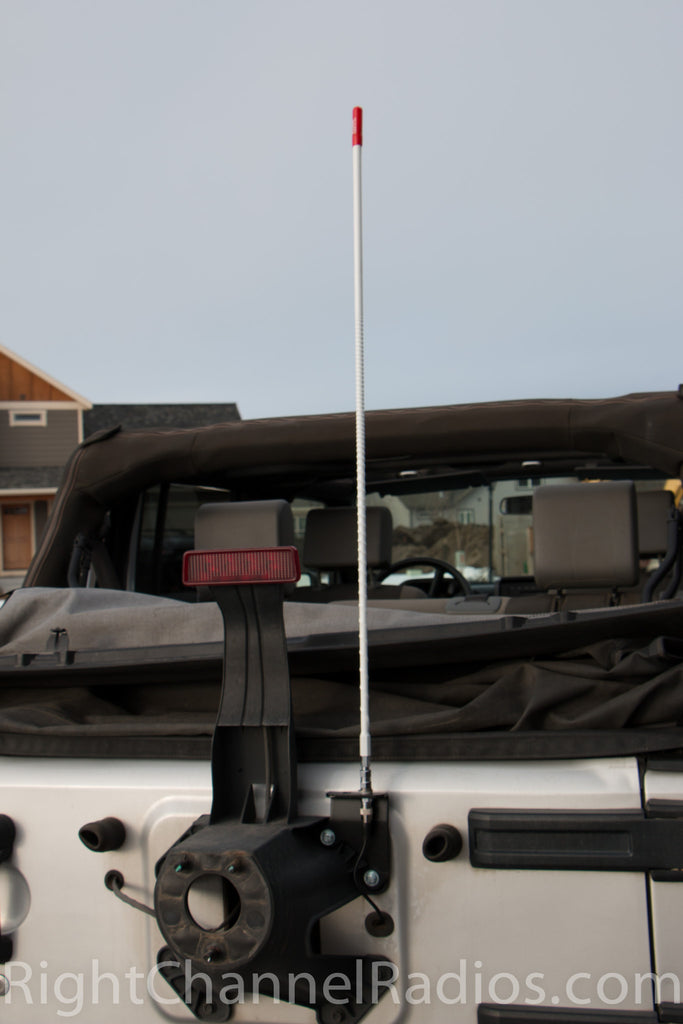

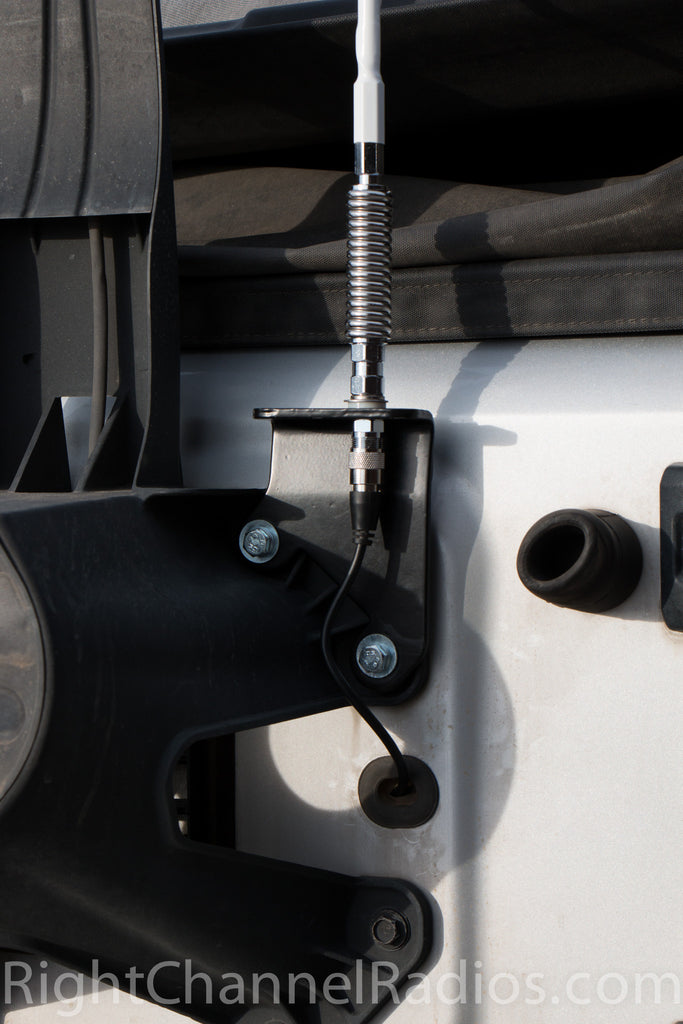

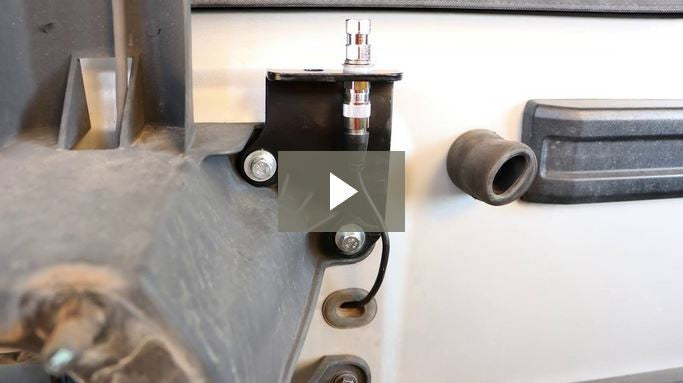

Installing the JK wrangler mount is simple and easy. Start by removing the spare tire. Once the tire is off the vehicle, remove the two factory bolts from the upper right side of the mount. Place the CB antenna mount over the empty holes and, using the two new bolts, attach the antenna mount to the tire carrier. After the mount has been installed, you can route the CB coax cable through the grommet in the tailgate and alongside the brake light wires. For more information, please see these complete JK installation instructions.

IMPORTANT NOTE: The mount uses a powder-coated finish, which prevents the mount and antenna from properly grounding out of the box. Make sure to scrape off the powder coating adjacent to the antenna stud and mounting bolts to ensure proper grounding. Otherwise, you'll experience high SWR and poor performance.

Mount Location:Other
Stud Type:No Stud
Material:Powder Coated

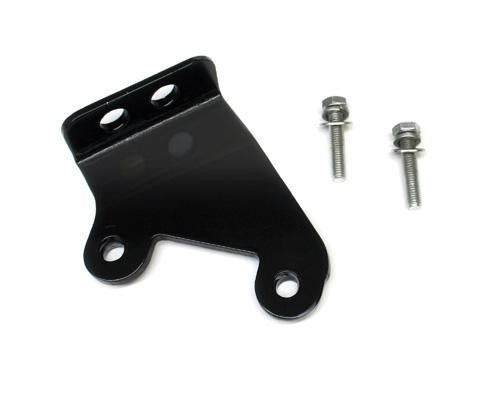

Product Includes:Teraflex JK Jeep Wrangler mount
(2) 8mm x 40 bolts with split lock washers
Antenna, antenna stud and coax cable sold separately

Customer Reviews

Based on 30 reviews
John W.
CB Antenna mount

Very strong mount. works as advertised

CB mount bracket

The bracket s very robust and well made

Great mount

this is a great mount that holds up to everything. the only bad thing i have to say is it needs a little work to get paint off when in stalling it.

Thanks for the review Jordan. Unfortunately powder coating is not a friend to grounding and needs to be scraped off around the bolt and stud holes. We're glad the mount is working out well!

John Q.
John Q

Great part. Have a third party carrier and needed to modified as the part is intended for stock. But was a quick mod.

Charles W.
Spare Tire Mount is a very poor fit!

The mount would not work without significant bending in order to let the antenna clear the spare tire on my 2014 Wrangler Sport with OEM Goodyear P255/75 R17 tires.
