Ford F250, F350, F450 and F550 CB Antenna Hood Mount (2017+)
- A stainless steel mount that's custom made for the 2017+ aluminum body Ford F250, F350, F450 & F550
- Two attachment points for extra stability and security

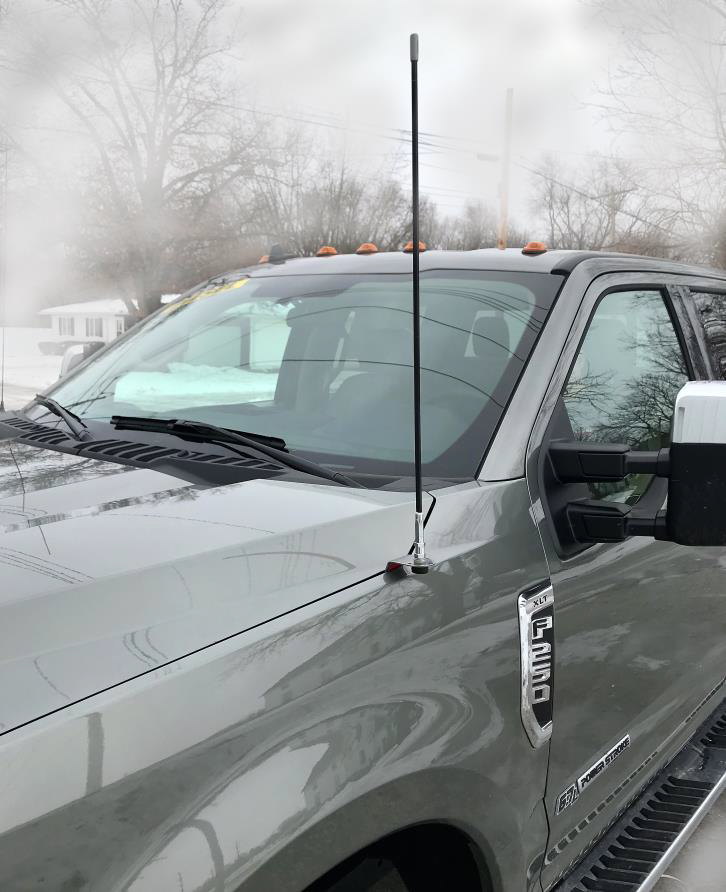

Adding a CB antenna to your Ford truck has never been easier. Made specifically for the 2017 and newer aluminum body Ford F250, F350, F450 and F550's, this mount attaches to two existing holes between the hood and fender for a fast, easy and sturdy install. Because the mount well supported, we highly recommend the 4' Firestik FS antenna for the best performance.
|Model / SKU:
|2017 and newer aluminum body Ford F250, F350, F450 and F550's. Recommended for fiberglass antennas up to 4' tall. If you have a different model of Ford Truck, check out our other Ford CB Mounts.
|All CB antennas that use a standard 3/8" x 24 threaded base. Ring stud requires ring-style CB coax.

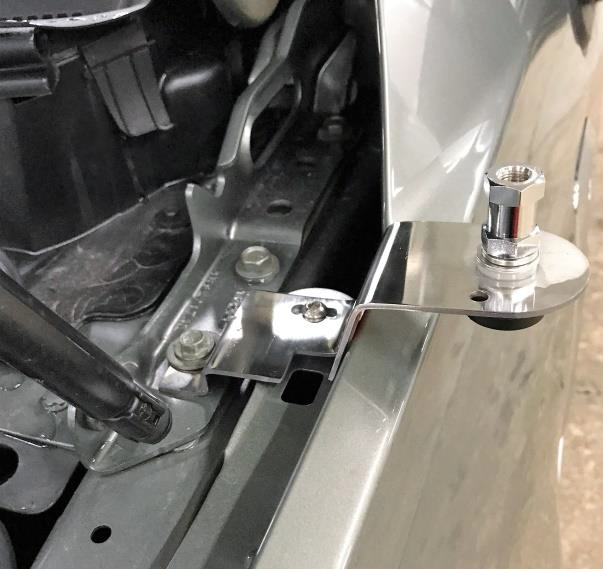

|Designed specifically for Ford vehicles, this mount two existing holes in the hood frame to mount easily and securely. The antenna mounts on the driver side of the hood rail.
|Hood / Fender
|Lug (Ring and Terminal)
|Mount and ring-style stud
Antenna and coax sold separately

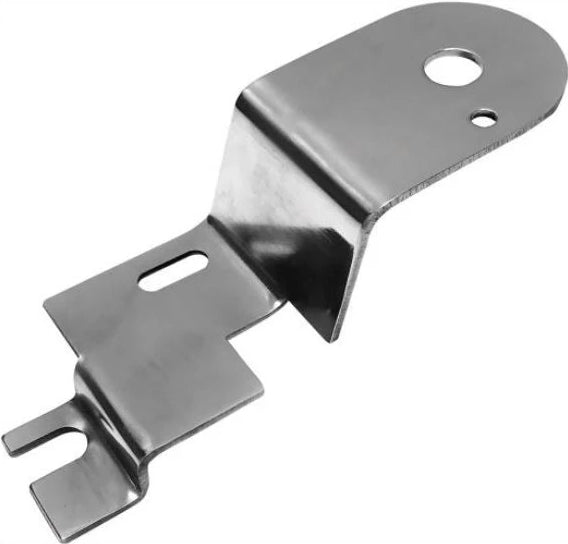

Designed for 2017 and newer F250, F350, F450 and F550's with the aluminum body. The mount is stainless steel, durable and rust-resistant. Mounts to the left side of hood fender and includes a ring-style stud compatible with ring coax cables. Rated for fiberglass antennas up to 4' tall and light antennas up to 5' tall.
Mount Dimensions: The mount is 2" wide with an overall length of 6". The spot where the antenna mounts is 2.5" long and the rise of the mount is 1.5" tall. The bottom of the mount is 2.5" long.
I used it for a VHF/UHF antenna so had to drill out the antenna mounting hole to 3/4” to fit an nmo mount. It’s fine quality in fit and finish is second to none! It allowed me to mount the antenna without drilling holes in the new F-350 aluminium body. Thus no warranty concerns with the manufacturer.
Fit very well. Just the right product for an aluminum truck. Easy to install. Very fast delivery and good customer service.
I installed the Ford F250 antenna hood mount. The quality of this mount, and fit is exceptional.
