Firestik DM4A Dome Mount
- Create a permanent, rugged antenna mounting surface with the DM4A
- Accommodates fiberglass or trucker antennas up to 5'tall
A dome mount is the perfect solution for creating a permanent, rock-solid CB antenna mounting surface that can accommodate antennas up to 5' tall, including fiberglass and medium-sized trucker antennas like the Wilson 2000. If you'll be removing a headliner for installation, you may want to consider the lug-style version of this mount, the Firestik DM4 Mount (see related products). The DM4's coax connection takes up much less space and is more suitable for tight headliner installations.
|Model / SKU:||Firestik DM4A|
|Recommended for:||Pickups and commercial/industrial vehicles. Ideal for applications requiring a permanent, secure mount that can accommodate larger CB antennas up to 5' tall.|
|All fiberglass and center-load antennas that use a standard 3/8" x 24 threaded base. Requires a PL-259 barrel-style coax connection.|
|Installation requires drilling a 1/2" hole on the mounting surface. If installing between the roof and headliner, we recommend the Firestik DM4, which uses a less protrusive coax connection. Mount is approximately 2" tall.|
|Flat Surface (Roof, Bumper)|
|Product Includes:||Firestik DM4A Dome Mount|
Coax cable and antenna sold separately

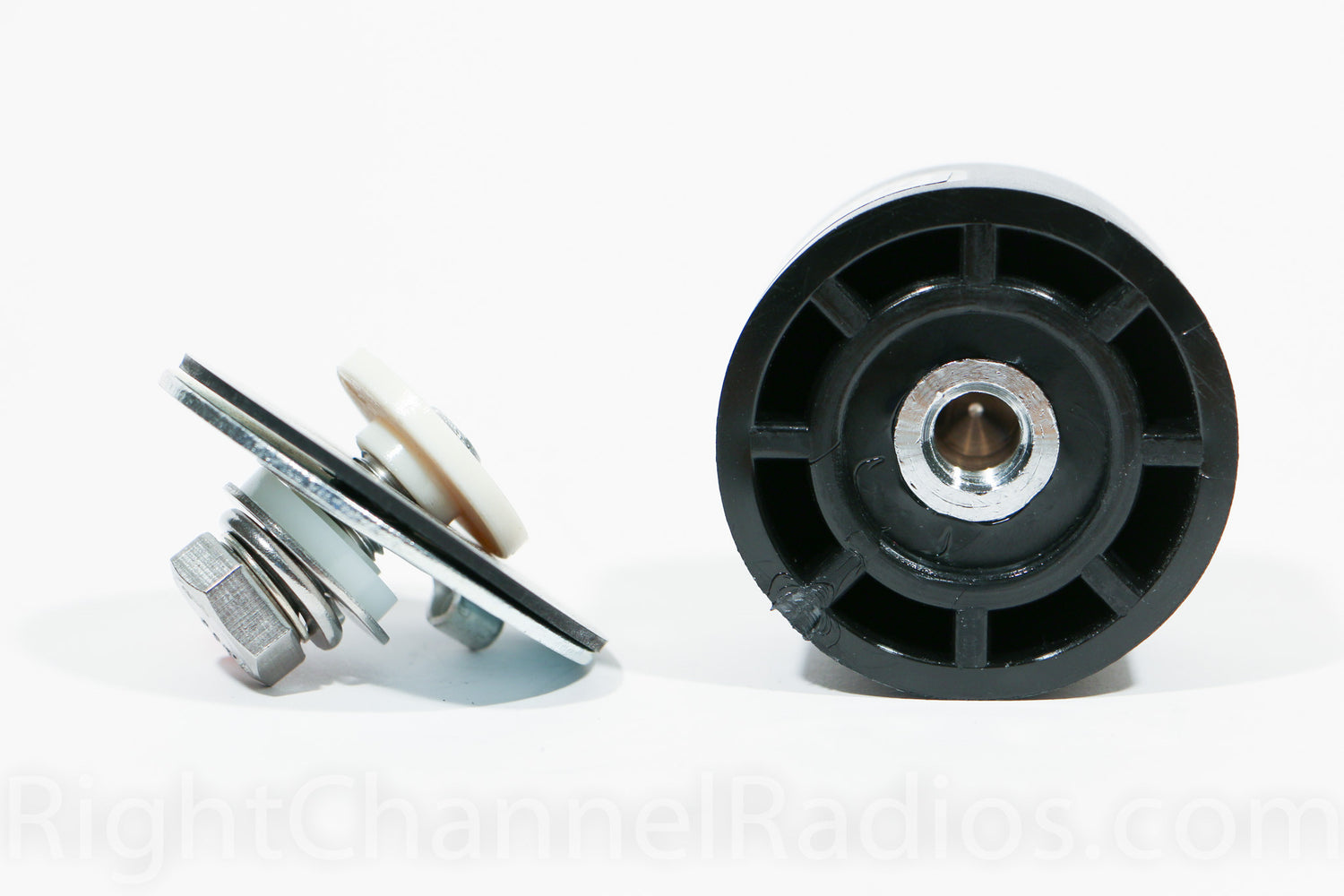

As you would expect, Firestik takes the popular dome mount to the next level! Instead of using a multipiece mold insert, Firestik designed its mounts with a one-piece insert. This eliminates the chances of developing internal resistance or water leaks through the center that can corrode connections or ruin the inside of your vehicle. Firestik molded this piece using glass-reinforced nylon for durability, strength and longevity.

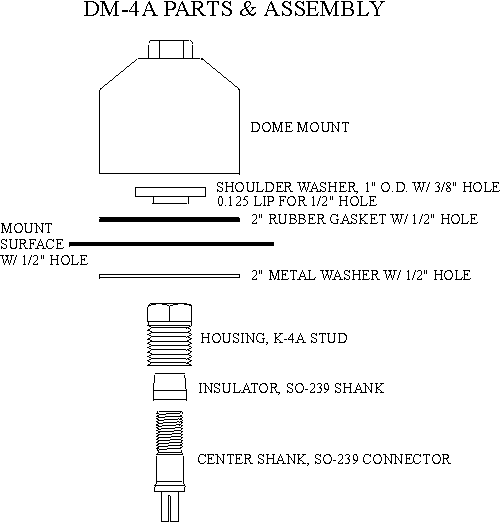

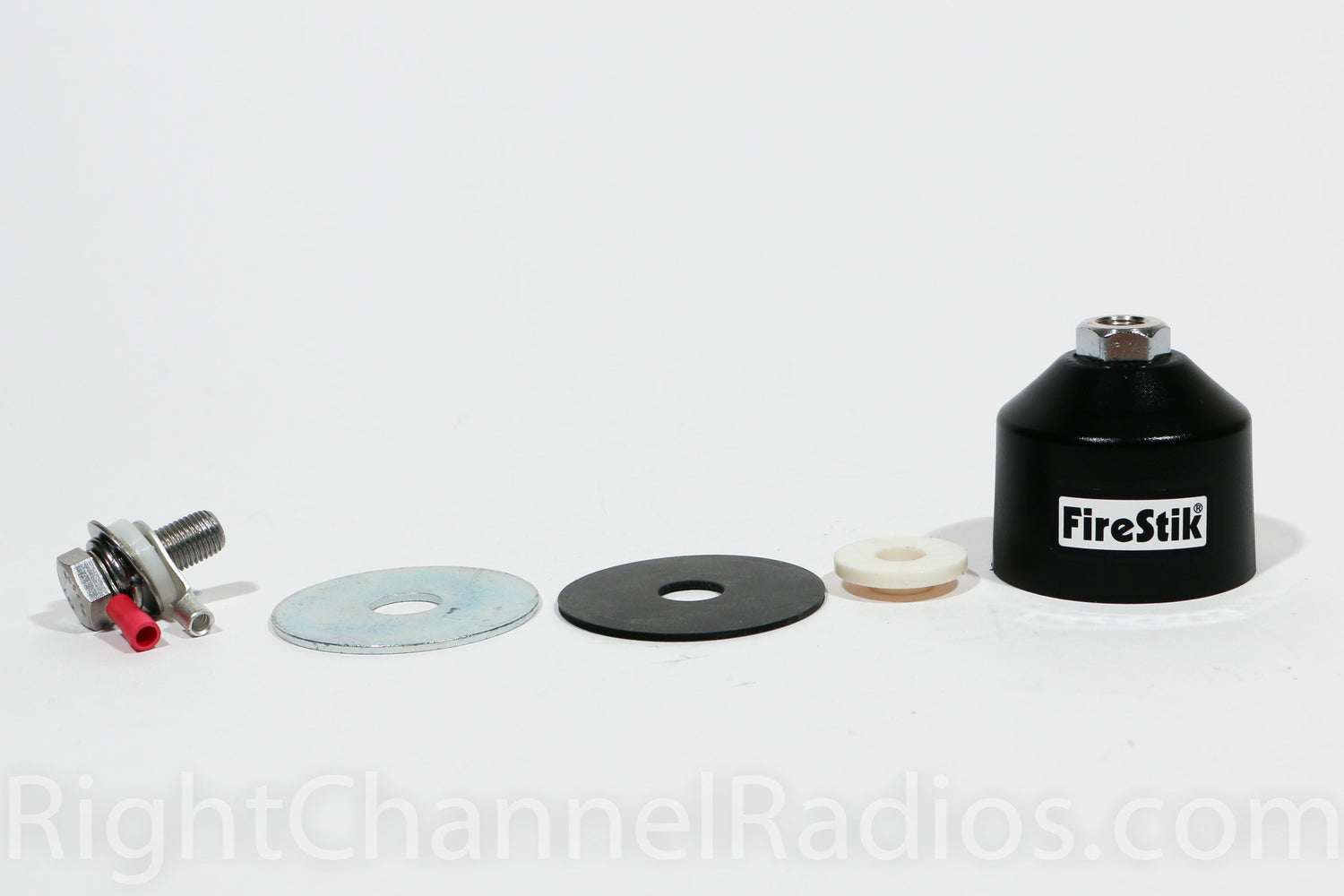

The dome mount is made to fit a standard 1/2" (13mm) hole, so you can use it on all common mounts (mirror mounts, flat mounts, stake hole mounts, etc.) or by itself as a stand-alone mount. Each model includes a rubber seal and an underside support washer. These mounts have a 2" (51mm) diameter base and, when installed with the rubber seal in place, stand a little over 2" (52mm) tall.
It is perfect for using with the Firestik antenna. Very robust and has the perfect coax join.
Nice and strong, does what it’s supposed to do.
This mount is great and is extremely solid. Does just as one would expect with keeping the antenna rigid without flexing the surface the antenna is mounted to.
I have used just about every kind of antenna stud made BUT, this is what I ONLY use NOW . They work GREAT! EXCELLENT grounding , simple install, no drilling out holes on mounts. I have used this stud mount with 102" whips, 6 feet Francis antennas, Monkey Mades, and the Predator 10K . NO FAILURES. I use it with a STAINLESS STEEL bracket . Made to last for sure.
I have used this type of mount for years. I have put some heavy antennas on this mount without a spring. I have never split one yet! Its easy to install and last for years.
