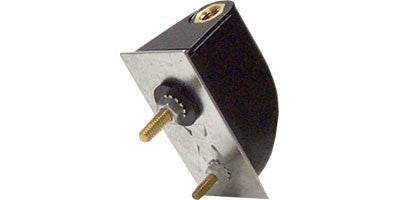

CB Molded Side Mount

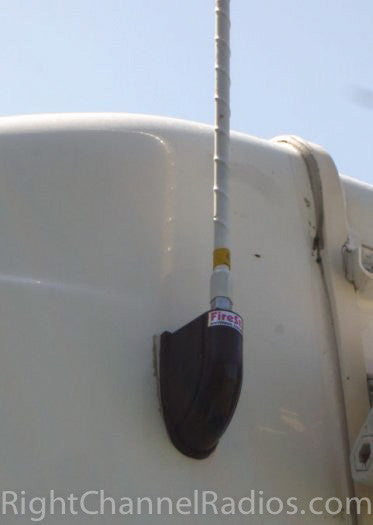

This molded side mount is perfect for achieving a factory CB look. The mount's molded form makes the CB antenna look like a natural extension of the vehicle rather than an aftermarket accessory. This mount attaches to a vertical surface, accepts standard CB antenna threads, and is compatible with terminal-end coax cables.

Model / SKU: PTSBM or 102X

Recommended for: Any vertical mounting application where the user wants to hide the mounting bracket in order to achieve a seamless factory look.

Compatible with: Center load antennas up to 4' in length, that use a standard 3/8" x 24 threaded base.

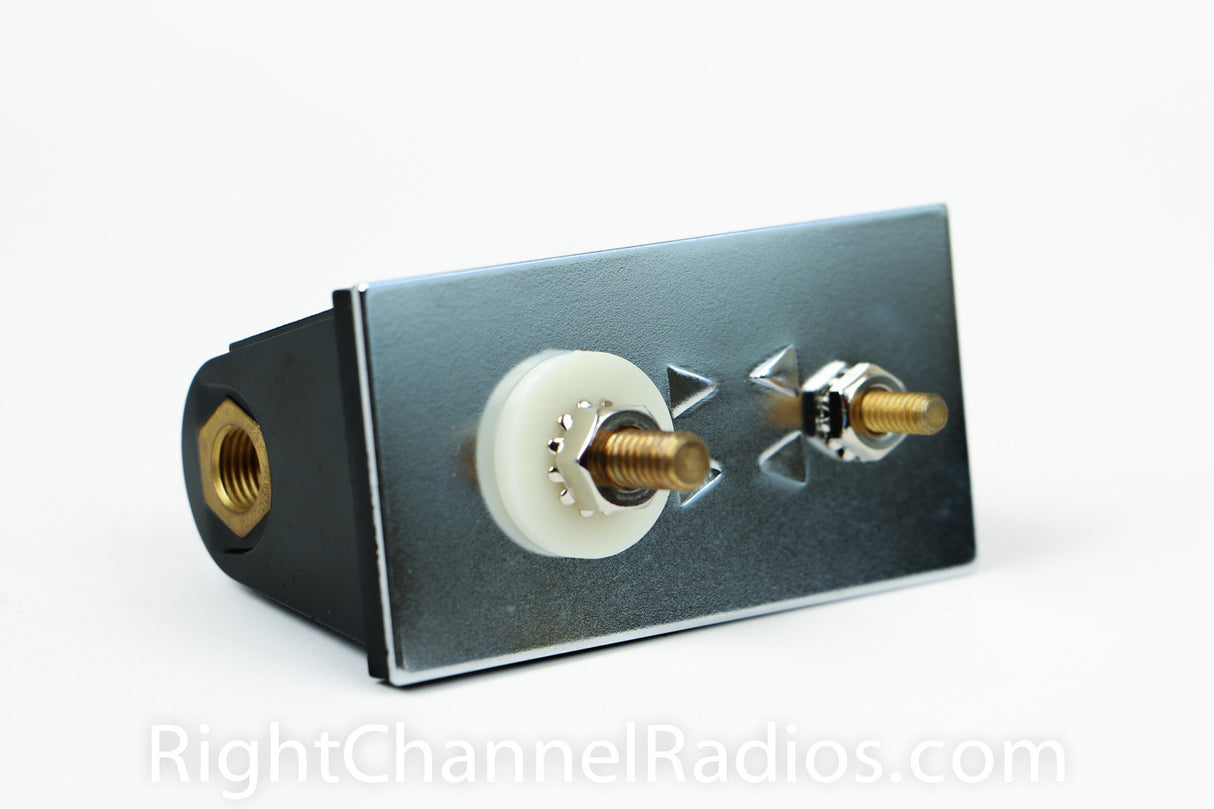

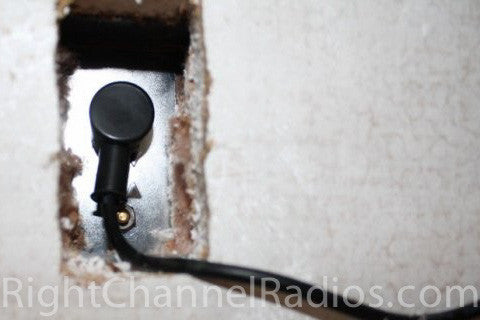

Installation Notes: The molded side mount has two mounting bolts. You'll need to drill two holes and attach the bolts from the inside of the vehicle. Installation also requires terminal-style coax cable, which attaches to the mount from inside the vehicle, creating a clean, wire-free external appearance.

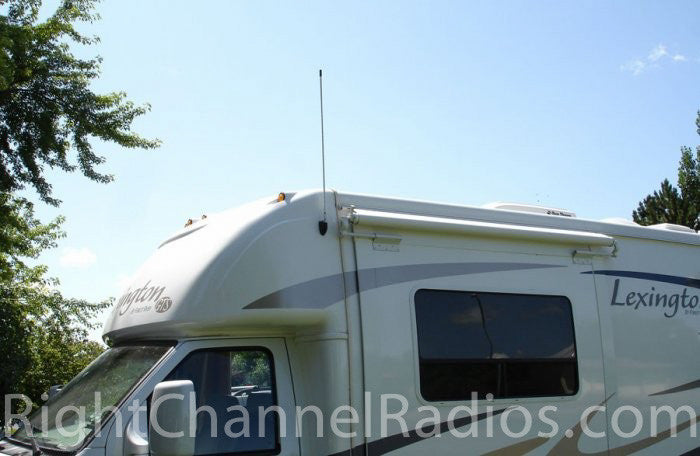

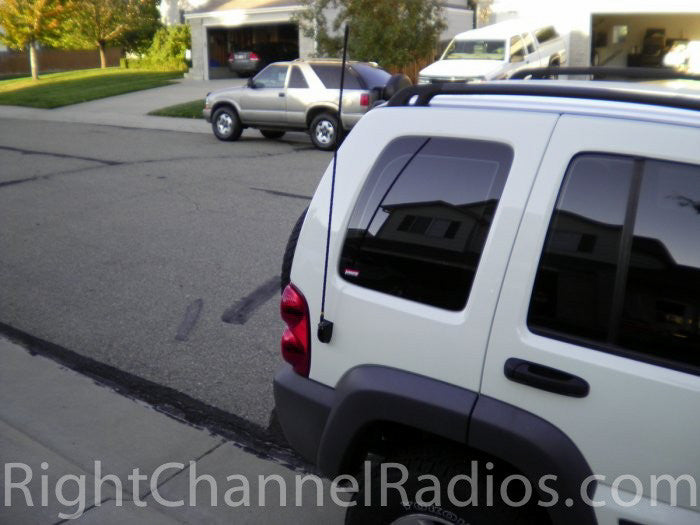

Mount Location: Vertical Surface / Side Mount

Stud Type: Lug (Ring and Terminal)

Material: Other

Product Includes:

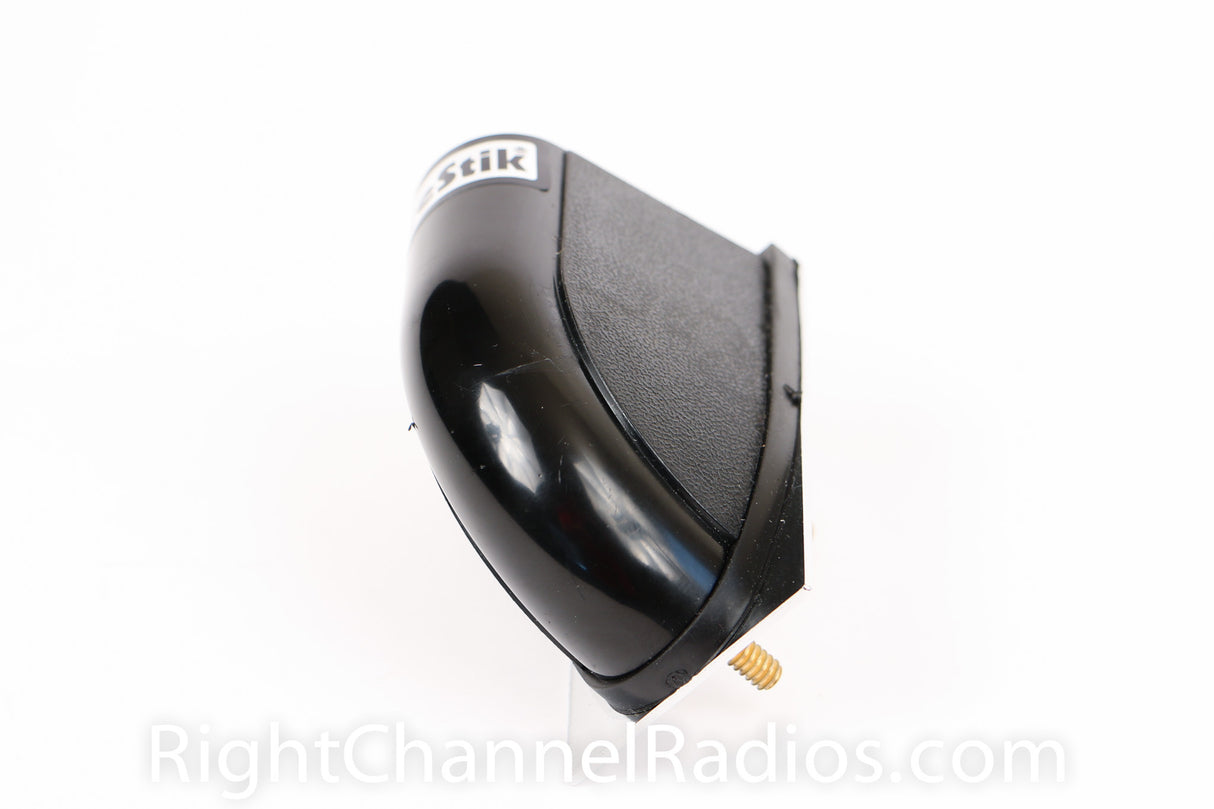

• Molded side mount, lug-style antenna stud
• Antenna and coax sold separately

• Molded side mount for professional-looking installation
• Black finish
• For use with terminal end (non PL-259) coax cables
• Compatible with all standard 3/8" x 24 antennas

Dimensions:

• Mounting Surface Area: 3.125" (79mm) x 1.675" (43mm)
• Upper Mounting Hole Diameter: 13/32" (10mm)
• Lower Mounting Hole Diameter: 13/64" (5mm)
• Mounting Holes, Center to Center: 1.5" (38mm)
• Outward Protrusion from Mounting Surface 1.88" (48mm)
• Maximum Mounting Surface Thickness: .28" (7mm)
