Cascadia Semi Truck CB Antenna Mount
- This heavy-duty mount uses existing bolt holes for a quick, no-drill install for Cascadia truck drivers
Made specifically for Freightliner Cascadia trucks, this heavy-duty, powder-coated CB mount uses existing bolt holes for quick, no-drill installation. This mount can support large CB antennas, has a 1/2" hole for installing a CB antenna stud (not included), and is available in both driver- and passenger-side versions. Ideal for Cascadia truck drivers who want a CB mount that's easy to install and will last a lifetime.
|Model / SKU:||MMCAS|
|Freightliner Cascadia trucks. This heavy-duty mount can support antennas over 5' tall and is available in both driver- and passenger-side models.|
|Compatible with:||All CB radios and all fiberglass and center-load antennas that use a standard 3/8" x 24 threaded base.|

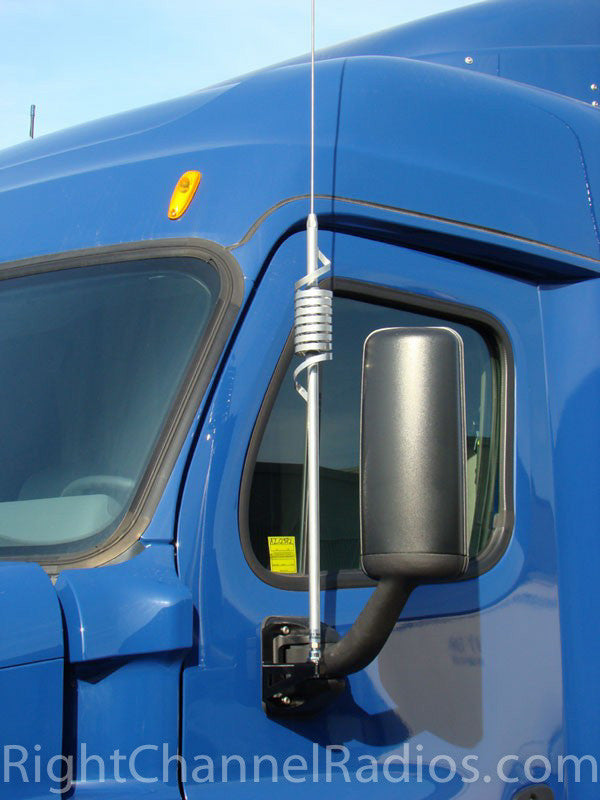

|Installation Notes:||This mount attaches to the mirror arm using the existing front two bolts. Simply remove the two bolts, place the mount over the mirror arm, and reattach the bolt.|
Important Note: While this product provides a great mounting surface, it does not include a stud. You will need to purchase a separate CB antenna stud to properly mount your antenna. Also, the mount has a powder-coated finish that prevents the mount and antenna from properly grounding. Make sure to scrape off the powder coating adjacent to the stud and mounting bolts to ensure proper grounding.
|Mount Location:||Mirror / Bar|
|Stud Type:||No Stud|
|Product Includes:||Cascadia Semi Truck CB Mirror Mount|
Antenna, coax cable and antenna stud sold separately

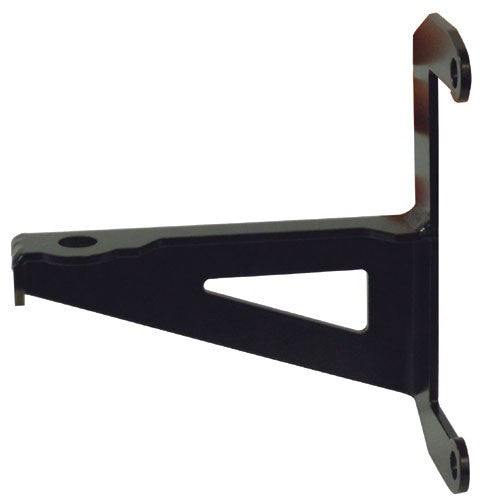

The Cascadia mount measures 5 3/8” between the mounting holes (that mount it to the truck). The triangle piece that the antenna mounts to comes out about 5 5/8”, and tapers from 2 ¾” down to 7/8”. The steel measures about 9 gauge after the powder coating, which indicates it is 10 gauge steel.
Great mount easy install
The Cascadia CB mount is the best quality I've come across yet. I am extremely satisfied with the product and customer service.
This particular mount will not allow you to tilt the antenna forward at all. In order to get a properly tuned antenna it must be tilted forward on this particular tractor. Just take a look... it stands vertical. The mirror is in the way and the truck is in the way. This prevents any acceptable tuning of the antenna.
Either a single bird perch with a light fiberglass antenna or the Wilson brand available at truck stops will both allow you to tilt the antenna to get a good standing wave ratio.
Installation was easy and looks great. The only thing is it could be made of thicker gauge metal or reinforce at bends . Thanks again.
A good product, easy to install, made a world of difference, Needs to be a little stronger for heavier antennas, though.
