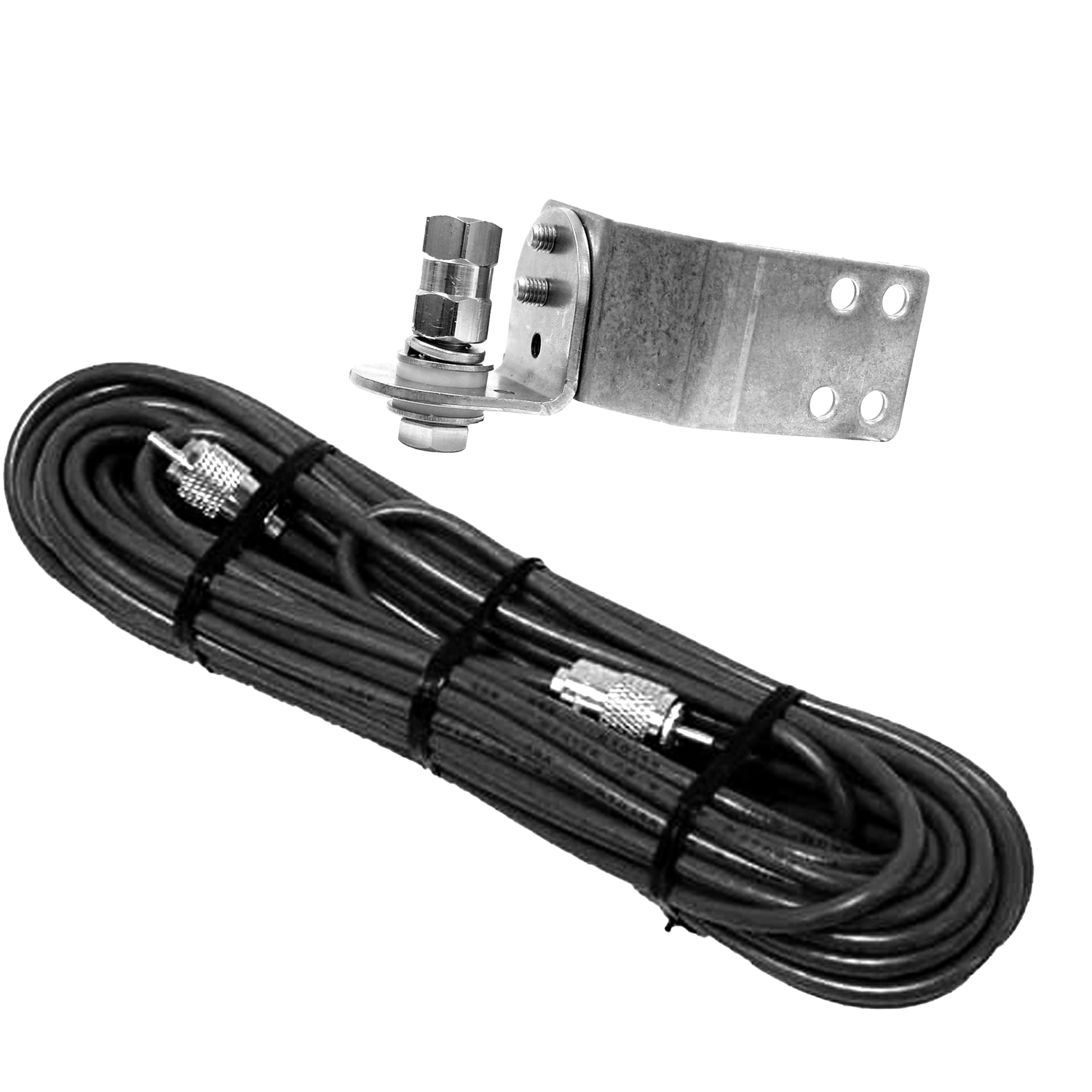

Door Jamb CB Antenna Mount Kit
- Everything you need for installation on your vehicle door in one easy kit
- Recommended for antennas up to 4' tall
- Kit includes 18' of RG8X coax cable
This kit features a unique CB mount designed for installation on a vehicle's door jamb or tailgate hatch. Once the mount is installed, the 180-degree swivel allows you to adjust the stud to ensure a straight, vertical antenna regardless of the mounting angle! This Firestik mount was designed for vans, pickup trucks and SUVs, but is versatile enough to mount on any vehicle door. Made from rust-resistant stainless steel and recommended for antennas up to 4' tall. Kit includes 18' of quality RG8X CB coax cable.
|Model / SKU:||Firestik SS204A + (8X-18X or PP8X18)|
|Recommended for:||Mounting to inner door jambs, such as those found on the rear or side door of a cargo van or truck. The vertical adjustment feature lets you mount the jamb on either side of the vehicle or to vehicles with non-vertical door jambs. Recommended for antennas up to 4' tall.|
|All CB radios, and all fiberglass and center-load antennas that use a standard 3/8" x 24 threaded base.|
|This mount attaches to the inner edge of the door jamb and contains four holes to secure it to the vehicle using screws or bolts. We recommend first marking where the holes will be drilled using the mount as a template. You can then drill the holes and attach the mount. Can be mounted to the driver or passenger side door.|
|Vertical Surface / Side Mount, Trunk / Hatch, Other|
|Product Includes:||Firestik Door Jamb Mount|
PL-259 Antenna Stud

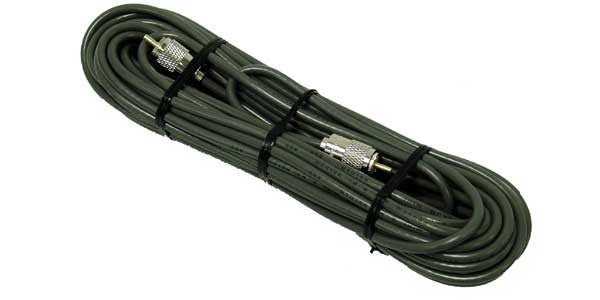

18' of RG8X Coax Cable
These Firestik mounts were specifically designed to enable antenna installation on vehicles where other mounts might not work. The primary goal was to offer a mount that could attach to the inner door jamb, such as the jamb found on the rear or side door of a cargo van. The mounting screws are on the inner edge of the jamb, eliminating visible holes in the vehicle. Like many other Firestik mounts, the versatility of these mounts go well beyond their targeted use. For antennas up to 4' tall.
Bracket parts and mounting hardware are made of stainless steel for years of trouble-free use. The bracket is 1.5" (38mm) wide and has a 2" (50mm) reach for mounting inside the door jamb. Overall, the mount is 4.2" (105mm) long. In order to compensate for the door jamb angles, the stud bracket will swivel a full 180 degrees, 90 in each direction. This feature lets you mount the antenna on the left or right side of the vehicle.
Screw-on coax attachment
