Firestik NGP 3-Way Mount CB Antenna Kit

11 Review(s) | Add Your Review

$59.95

Availability:

In Stock

*Length

*Color

* Required Fields

$59.95

Qty:

Quick Overview

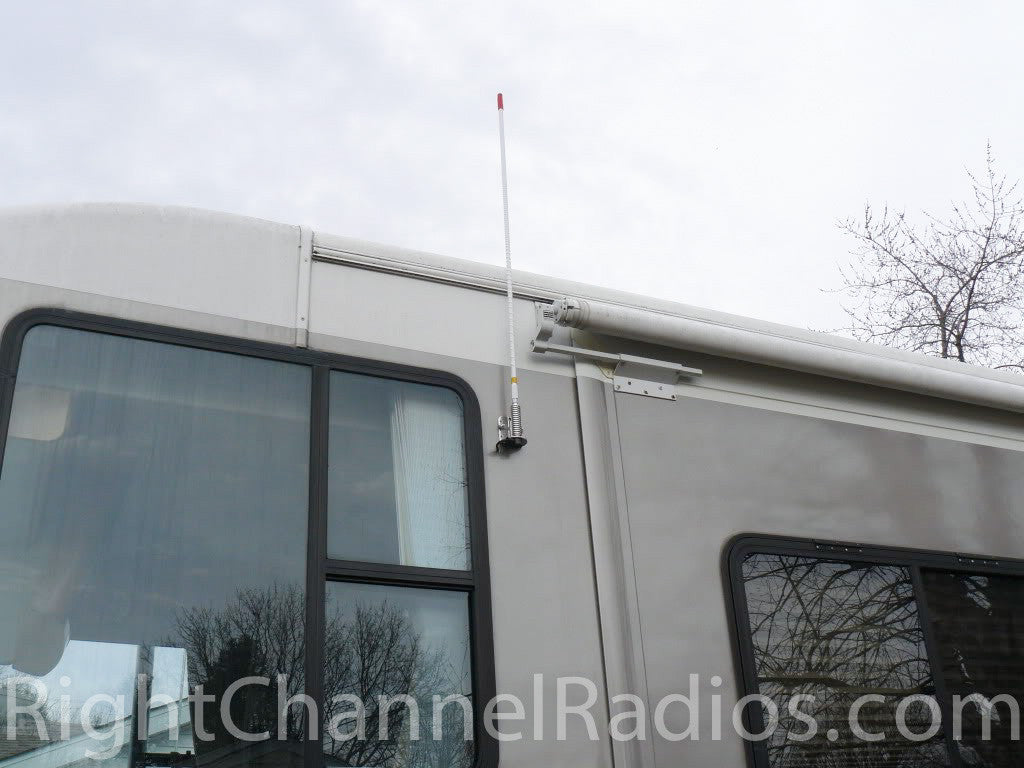

Our most popular no-ground plane (NGP) CB antenna kit, this package from Firestik makes it easy to mount an antenna on your RV, motorhome, boat or trailer and is designed to perform when installed on non-metallic surface. All components are premium Firestik products made in the USA. The included three-way mount allows for mounting to vertical and horizontal bars and to vertical surfaces, and is extremely versatile. All hardware is made from weather-resistant stainless steel, and the included coax cable is heavily shielded to prevent signal loss and help you transmit farther.

Firestik NGP 3-Way CB Antenna Mount Kit

Double click on above image to view full picture

More Views

Additional Information

Model / SKU:	Firestik FG3-648, FG4-648
Recommended for:	RVs, motorhomes and trailers that don't have a metallic chassis. A large, metallic chassis (i.e. ground plane) is necessary for standard CB equipment to work properly. However, the no-ground equipment in this kit is specially engineered to work when installed on fiberglass, wood and other non-metal surfaces. For more information on installing NGP systems, please see these NGP Installation Tips.
Notable Features:	USA-Made Components, Stainless Steel Mounting Hardware, Easily Tunable FS Antenna, 5-Year Antenna Warranty
Compatible with:	Virtually all CB radios. The three-way mount can be positioned horizontally or vertically for various mirror arms and rails. The back clamp can also be removed, converting the mount into an "L" bracket that can screwed into any vertical surface.
Antenna Length(s)	3', 4'
Antenna Color(s)	Black, White
Approximate Range:	Range(s) provided are for comparison purposes only and are subject to numerous installation and environmental variables. For more detailed information, please see our reference article on CB Radio Range. 3' Length: 2 to 3 miles 4' Length: 3 to 5 miles
Product Includes:	Firestik NGP antenna Firestik NGP coax Firestick 3-way mount, Antenna spring

Details

This kit provides an ideal solution when a good vehicle chassis ground isn't available. Whether it's installed on an RV, trailer, motorhome or boat, this kit will provide superior CB performance in a no-ground environment. All kit components are high-quality parts manufactured by Firestik.

The antenna included in these kits is extremely similar to Firestik's Firefly series, but specially modified for NGP applications. It has a tunable tip, which makes adjusting for peak performance and minimal SWR as simple as turning a screw on top of the antenna.

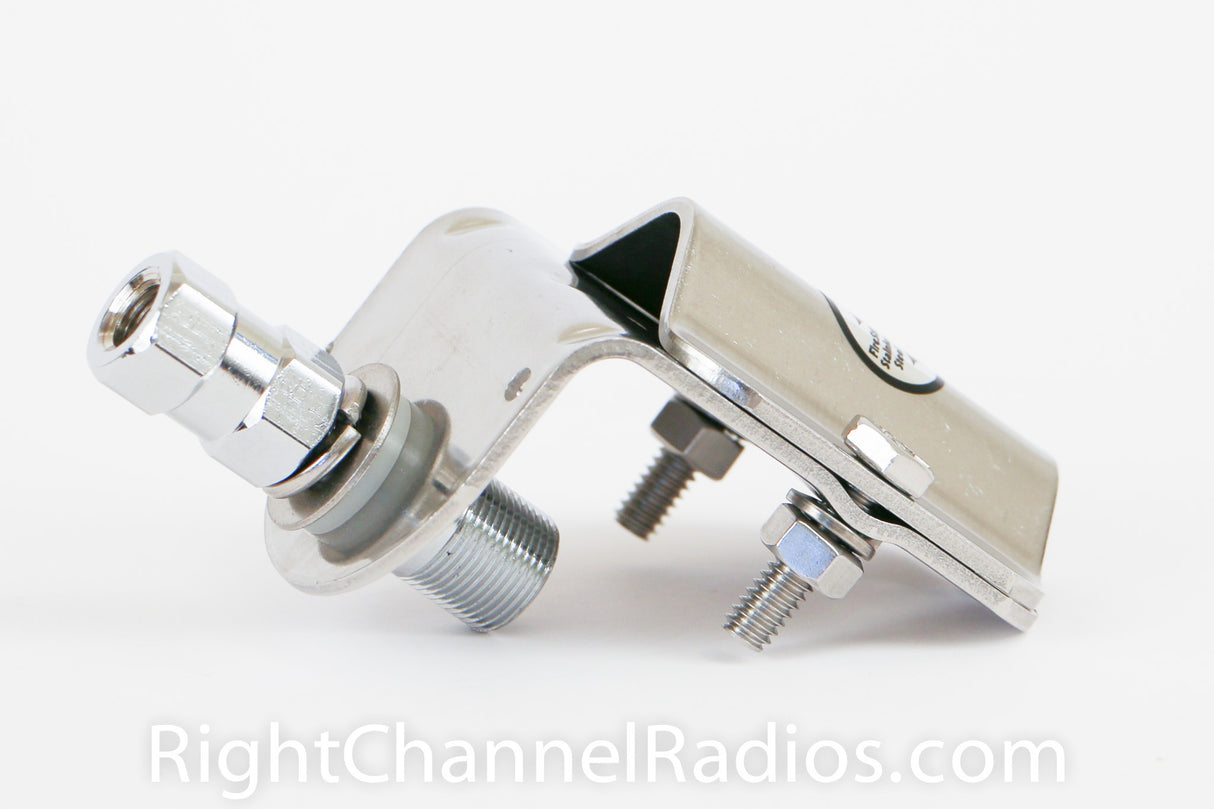

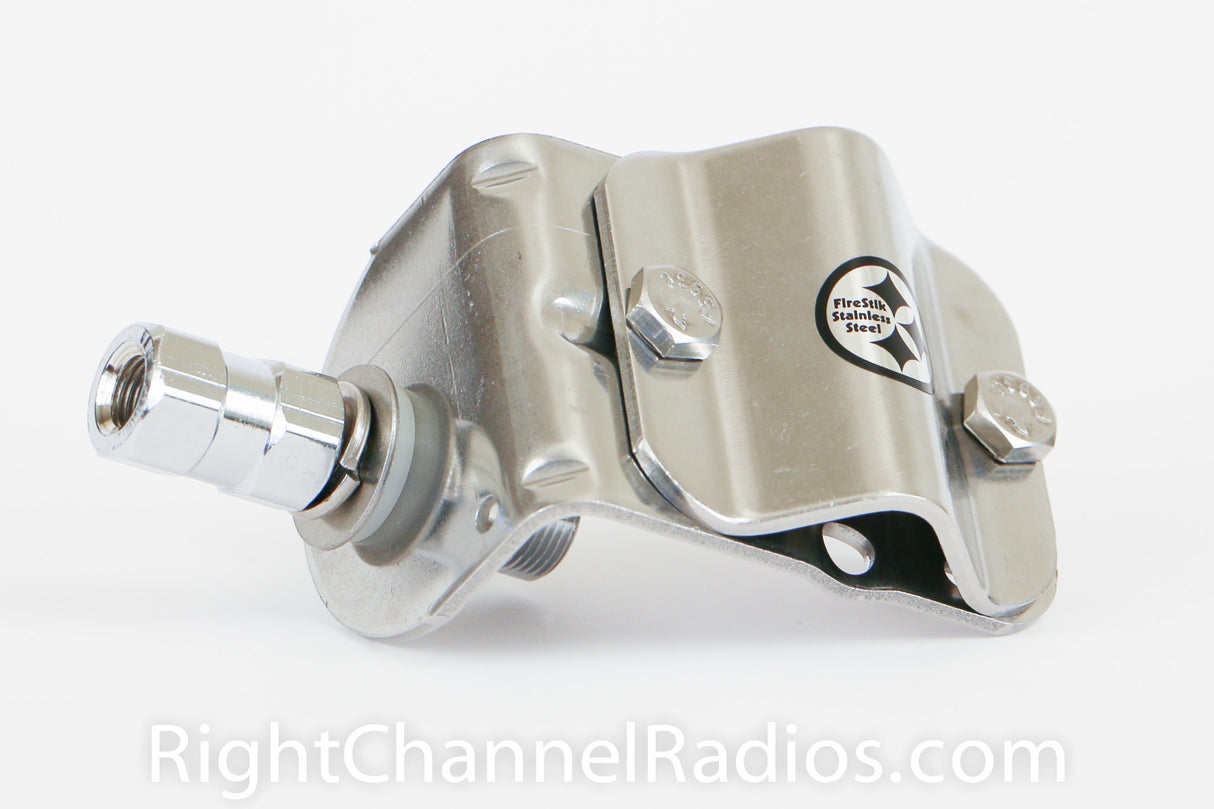

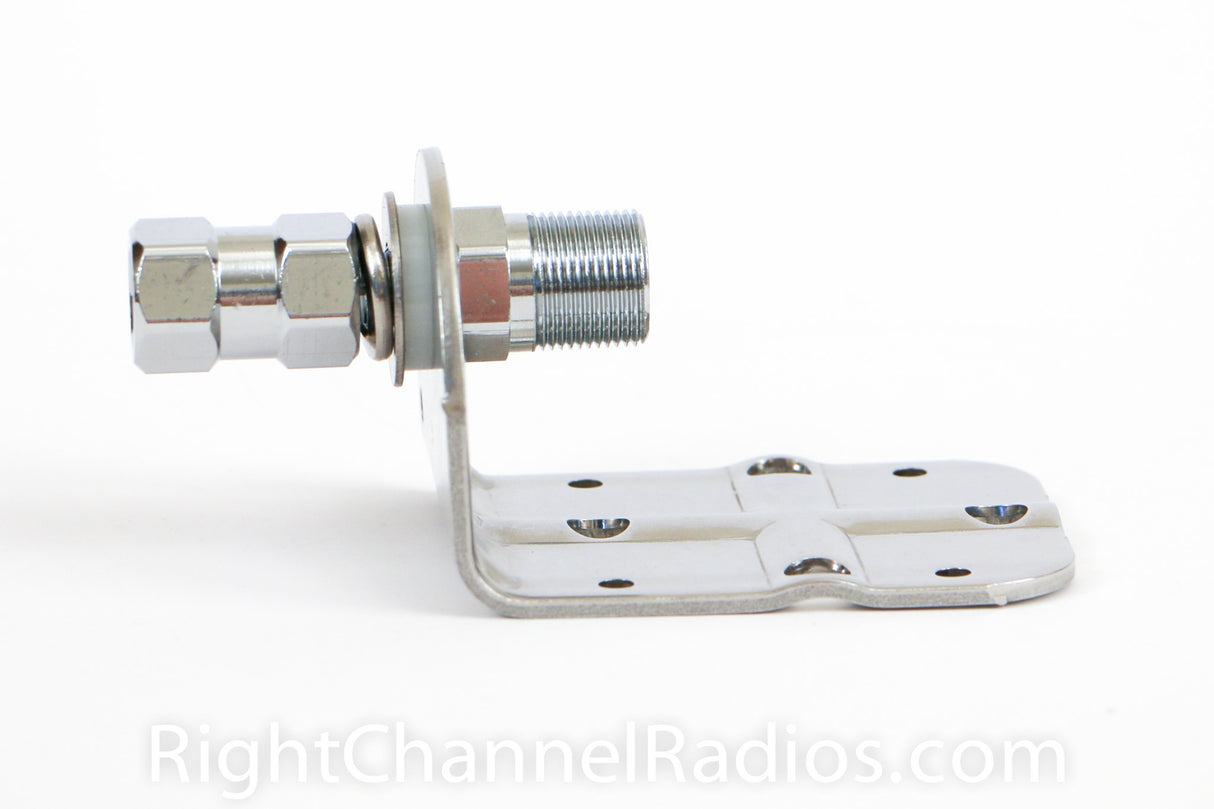

This kit uses Firestik's popular three-way CB antenna mounting bracket. This extremely versatile mount can be used to mount the antenna to vertical or horizontal mirror arms or other bars. If the back of the mount is removed, it also functions as an "L mount" and can be mounted to any vertical surface. The mount is extremely well built and made of rust-resistant stainless steel. The kit also includes a stainless steel antenna spring, which protects the mount and antenna if the antenna hits an object or becomes snagged.

The 17' coaxial cable included in the kits is of the highest quality. The kit's NGP cable assembly uses a custom-manufactured coaxial cable available only through Firestik. This NGP cable can only be directly attached to Firestik NGP antennas. If a longer cable length is required, the user may add standard RG-58 A/U cable between the radio and NGP cable, preferably in lengths that are multiples of nine feet. Because it is a tuned circuit, the length cannot be reduced without causing non-repairable damage.

If you purchase this kit, please make sure to read these important NGP installation instructions.

Kit Includes:

3' or 4' NGP Version of the FS Style Firestik CB Antenna

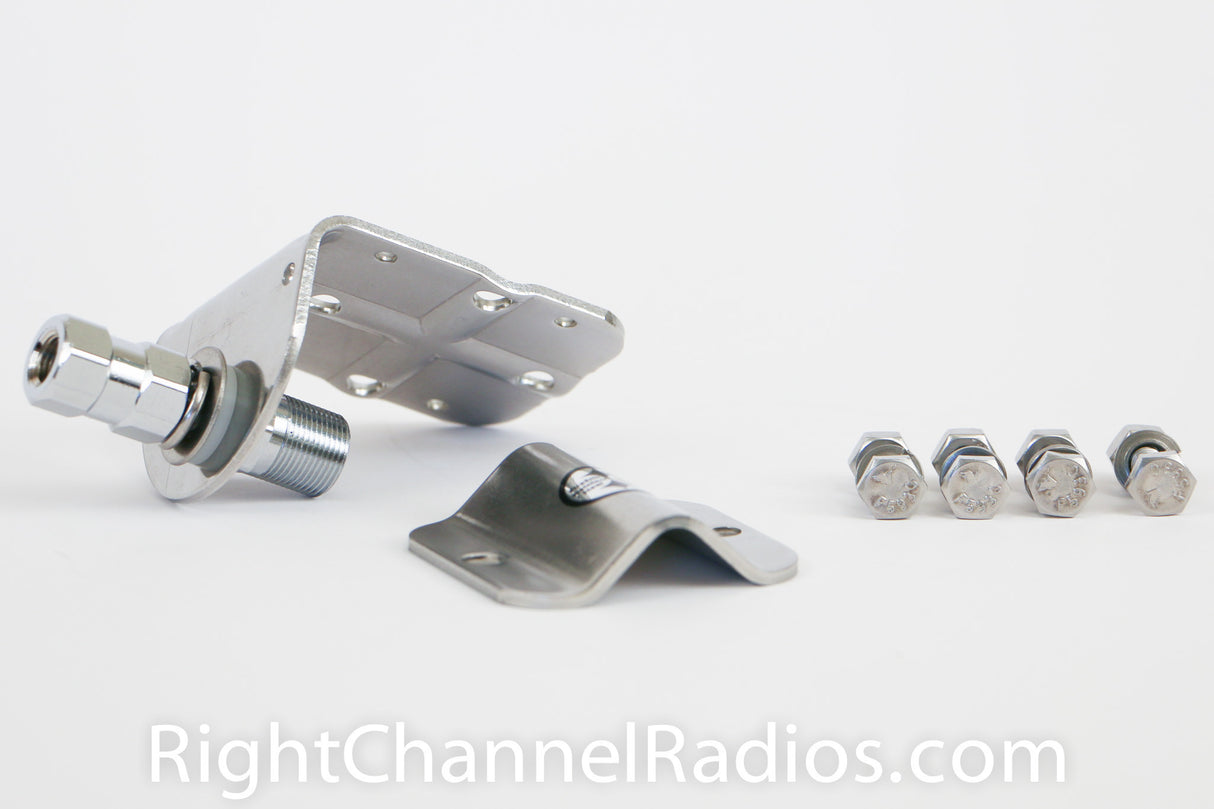

3-Way Stainless Steel Mounting Bracket

17' of NGP Fire-Flex Coax Cable

Stainless Steel Antenna Spring

Wire Microphone Hanger

Warranty: Five Years for Antenna, Two Years for Mount & Spring, One Year for Coax

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Customer Reviews

Firestik NGP
Review by Stephen

Overall Rating

The Firestik NGP kit worked wonders for me. I have a 2001 ranger with a fiberglass step side box, so I didn't have enough grounded plane to use the standard CB antennae. I would recommend this to anyone with a similar issue. (Posted on October 9, 2012)

Do you find this review helpful? Yes No

(2 of 2 people found this review helpful)

Low SWRs
Review by Rusty

Overall Rating

This is a great CB antenna to buy and my SWR levels are very low! Right Channel is a good place to buy stuff from. (Posted on April 7, 2012)

Do you find this review helpful? Yes No

(1 of 1 people found this review helpful)

Great kit, works well
Review by Dana S.

Overall Rating

I have sent you some pictures of the Firestik 4’ NGP Kit. I had some trouble with the eyelet cable, but used a beefed-up one. The one supplied broke. I used this kit on a dump truck. I also used the spring mount. It works great. I would like to mount it higher but the black top plants are low and hits the SWR adjusting screw and I don’t want damage it. This kit is the best for my truck. My doors are made of plastic and this works great. I give it a 5+. Thank you very much.
(Written 9/30/2010) (Posted on December 15, 2011)

Do you find this review helpful? Yes No

(2 of 2 people found this review helpful)

Satisfied.
Review by John G.

Overall Rating

I would rate the antenna 4 out of 5. I am satisfied with the antenna, although I was only able to get the SWR down to 2.0 across the band by doing many adjustments. I think it will perform adequately for my need which is communicating with another RV traveling in
close proximity.

I will do business with Right Channel Radios again if the need arises.
(Written 9/30/2010) (Posted on December 15, 2011)
