Additional Information
| Model / SKU: | Firestik K4-8R18 |
|---|---|
| Coax Type: | RG-58 (Single) |
| Connection Type: | Ring |
| Product Details: | Low-profile, weather-resistant ring connection |
| Compatible with: | All CB radios. The included mounting stud can be used with any mount that has a standard 1/2" hole or by drilling a 1/2" hole into a sturdy, metal mounting surface. The stud uses a standard 3/8" x 24 female thread and is compatible with all fiberglass and center-loaded CB antennas. *Important Installation Note: To allow routing through small openings, the PL-259 barrel connection that connects to the radio is not soldered to the coax, and must be soldered on once the coax is routed. If you'd like a cable that doesn't require soldering but still can fit through small openings during installation, please see the FME version of this FireRing cable. |
Details

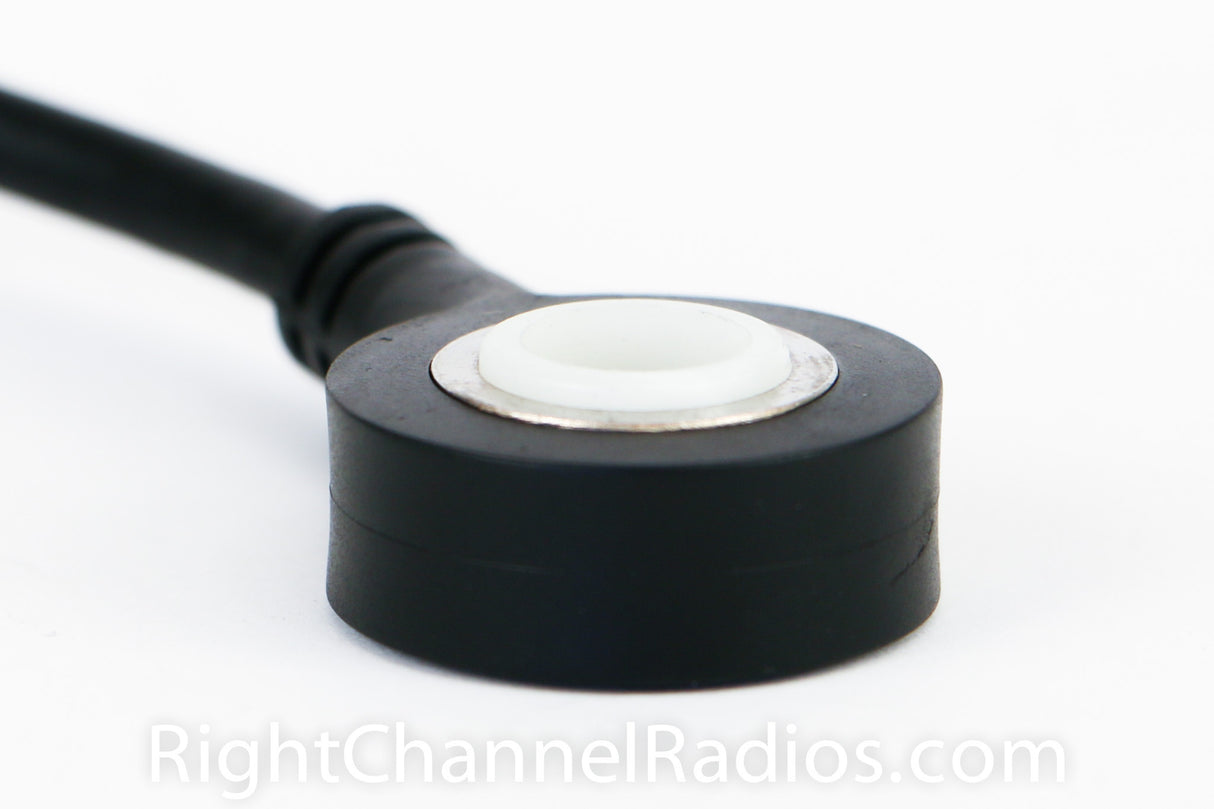

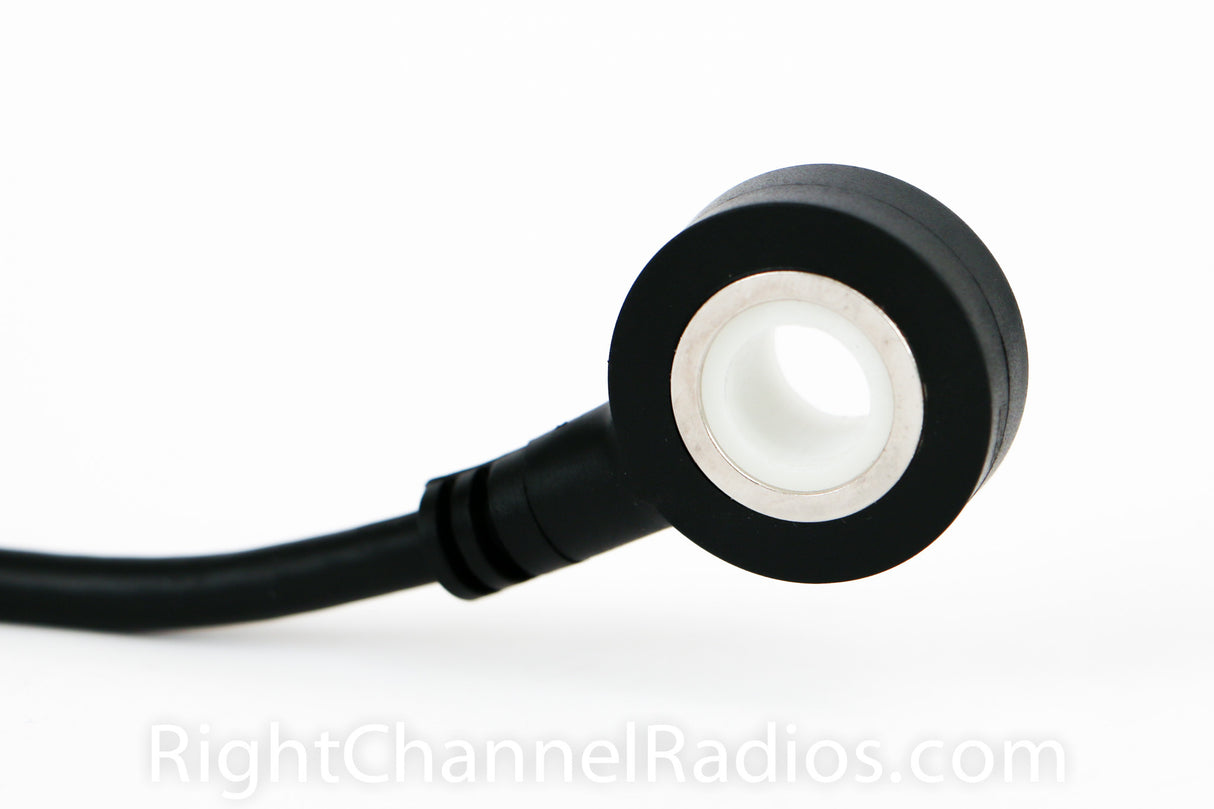

The FireRing connector from Firestik is an extremely well-built, versatile and respected cable connection. Its compact size makes it the perfect choice for use under headliners or installations where space is limited.

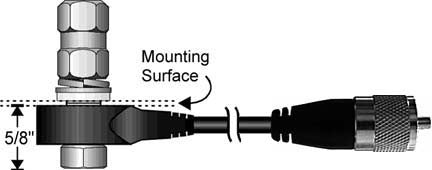

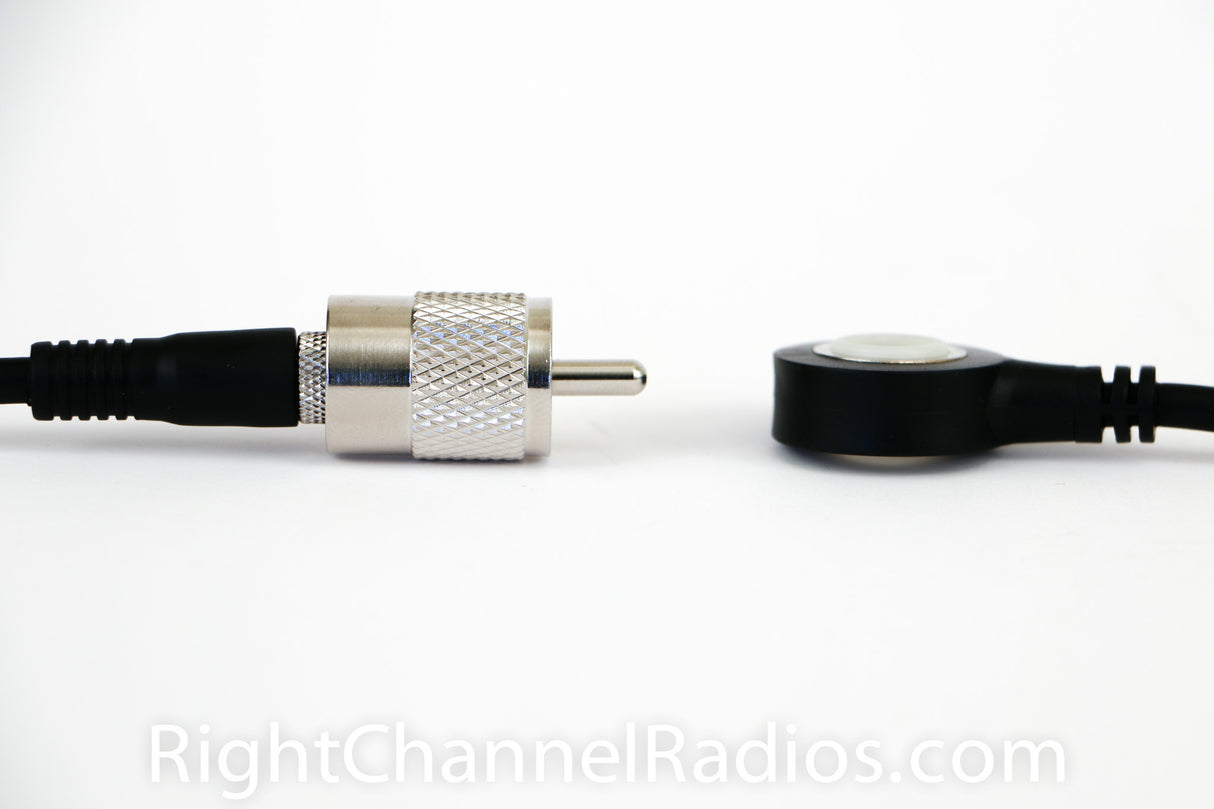

This cable package includes Firestik's respected FireRing connector, high-quality Fire-Flex cabling, PL-259 connector and FireRing compatible antenna stud. The stud mount hardware is made from stainless steel. The FireRing connector is weatherproof, low-profile and easy to install. The FireRing can be installed below or above the mount surface .

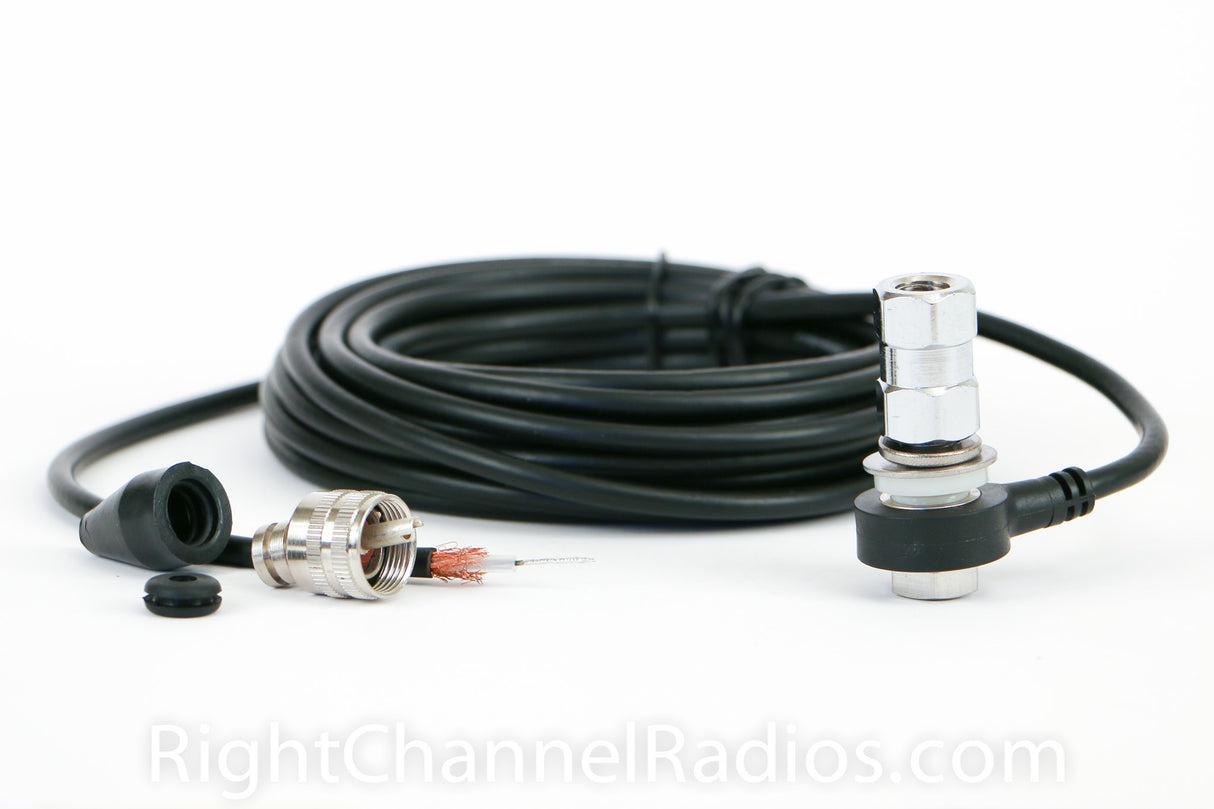

- Includes FireRing connector, compatible stud, PL-259 connector and Fire-Flex cable
- Stranded center conductor to maximize flexibility and prevent untimely breakage
- Shielding coverage that averages 95% to protect against RF leaks and interference
- Polyvinyl center insulation for ruggedness and longevity
- Performance that exceeds mil-spec requirements for 50 ohm RG-58A/U coax.

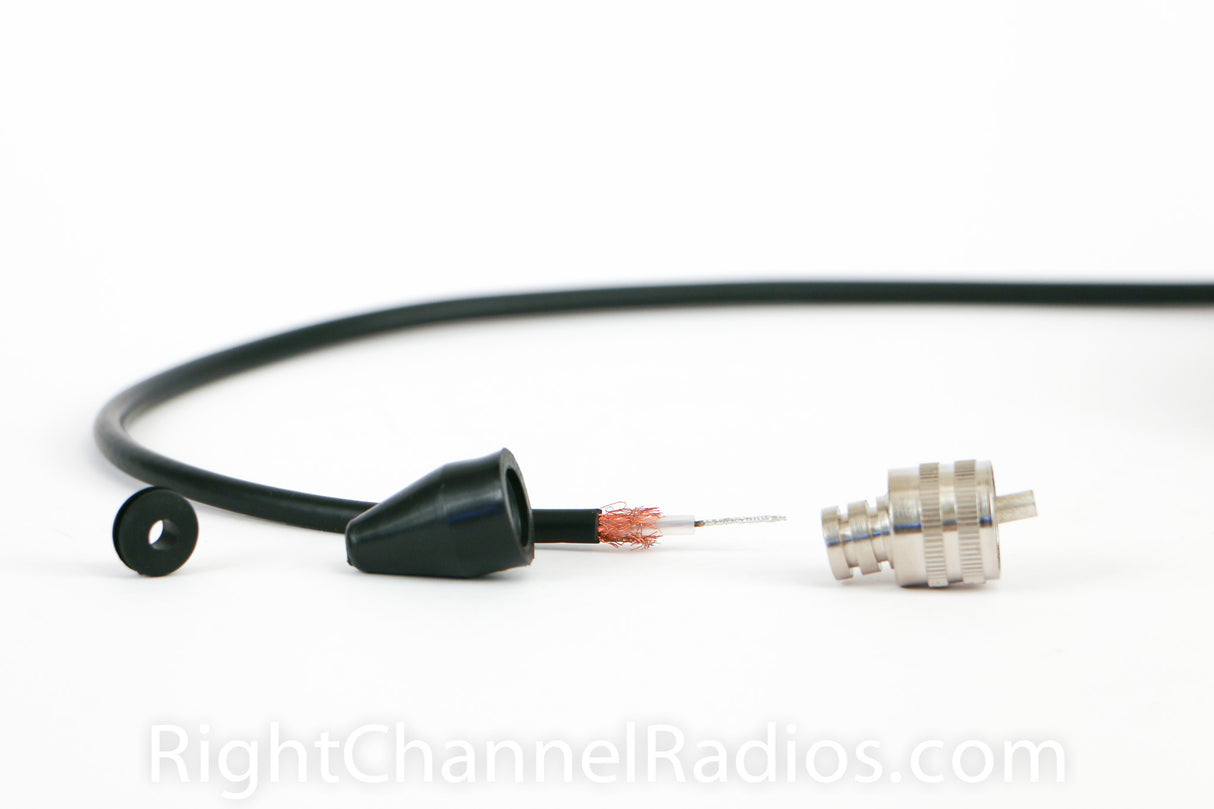

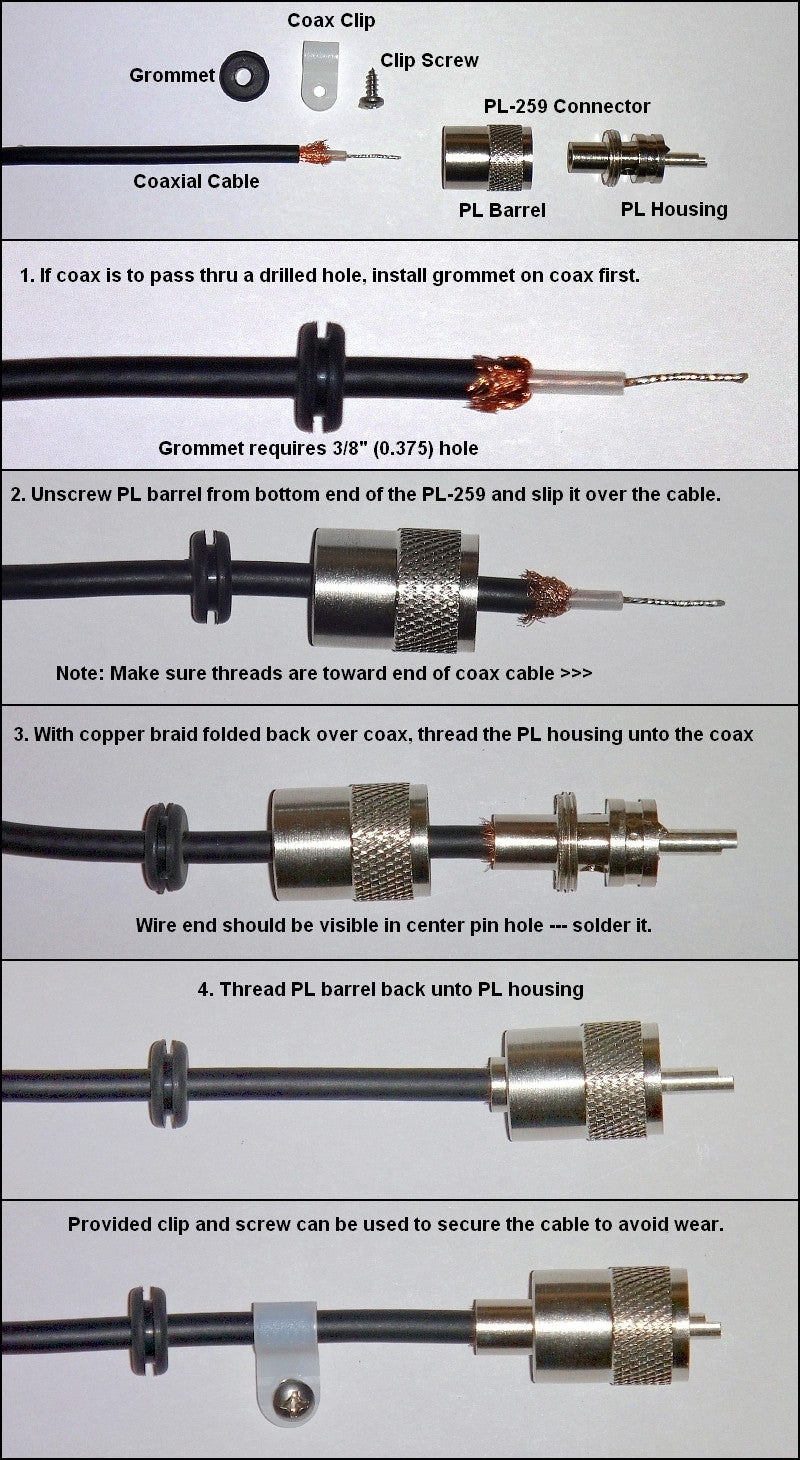

Important Installation Note: To allow routing through small openings, the PL-259 barrel connection that connects to the radio is not soldered to the coax, and must be soldered on once the coax is routed. If you'd like a cable that doesn't require soldering but still can fit through small openings during installation, please see the FME version of this FireRing cable.
Customer Reviews
-
Easy to Install!
Review by SilverSport -
I purchased the Firestik coax with the removeable PL-259 connector. It made routing the cable through the tailgate and along the roll bar of my Jeep. Once you get the cable to the radio, simply screw the connector back on. (Posted on May 1, 2013)Overall Rating
-
Quality product, just a little short for my installation.
Review by Jake Blue -
This product came highly recommended and installed along with the Firestik antenna and accessories without any problems whatsoever. Having never installed a CB and antenna before, I did my homework first and this site is a wealth of helpful information. I highly recommend RCR to anyone! My only word of warning is to make sure you measure before you start to ensure you get a long enough cable. 18-feet seems to be standard length and I estimated it would be enough but once I got into the installation with all the curves and such it ended up being about two feet too short. I had to reroute it three times before I found the diagonal route across the bed which was my only choice in order to reach. Just a word of warning for 4-door Jeeps or similar. (Posted on April 4, 2013)Overall Rating
-
Excellent product.
Review by Davy -
The Firestik FireRing CB Coax is an excellent product. I would recommend this side mount coax to anyone looking for a clean installation.Overall Rating
(Posted on March 11, 2013)
-
Really happy with this!
Review by DigitaLbraVo -
Other than a minor mishap at the shop that installed the antenna (the tech didn't properly follow the directions and I ended up with all the washers on the bottom and a short-to-ground at the antenna), once I realized what was going on a remedied it and gave everything a firm twist with a wrench.Overall Rating
It looks great! It was just along enough, maybe a foot or two of tucked away slack) going from under the radio to just behind the cab of my 2012 Tacoma double cab short-bed. I'm really happy with this purchase! (Posted on February 26, 2013)
Read All 8 Customer Review(s)
