Universal Hood CB Mounting Kit

$32.95

Availability:

In Stock

Qty:

Quick Overview

Featuring one of our most popular general purpose mounts, this kit is an excellent option for hood, trunk or hatchback mounting! The mount comes with a swivel that lets you adjust the antenna angle -- perfect for vehicles with a steep angle hood or hatchback. This kit fits virtually every vehicle with a straight 2" or shallower hood or trunk channel, and supports antennas up to 4' tall. Kit also includes 18' of high-quality RG8X 95% shielded coax cable.

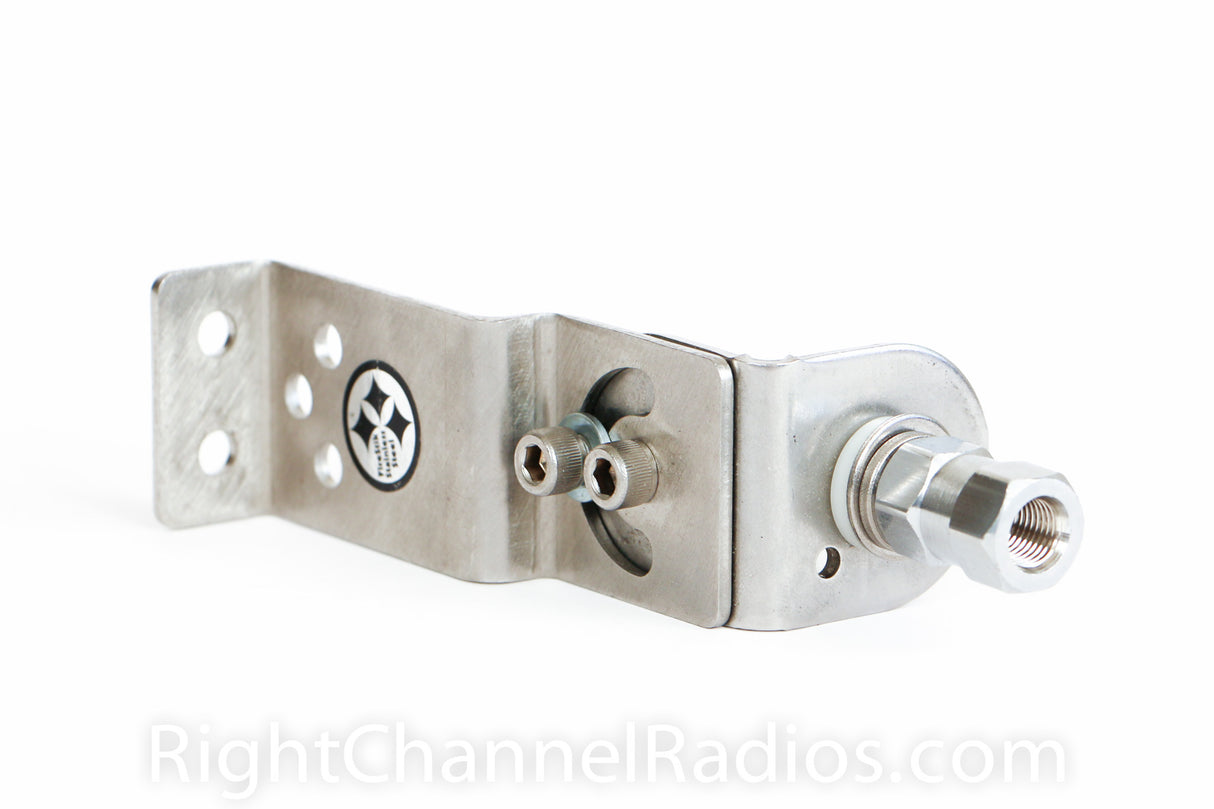

Universal CB Antenna Hood Mount Kit

Double click on above image to view full picture

More Views

Additional Information

Model / SKU:	K4A + STHS3 + (8X-18X OR PP8X18)
Recommended for:	Hood, trunk or hatchback installations. The riser portion of the bracket accommodates hood or trunk channels up to 2" (50mm) deep.
Compatible with:	All fiberglass and center-load antennas up to 4' tall that use a standard 3/8" x 24 threaded base.

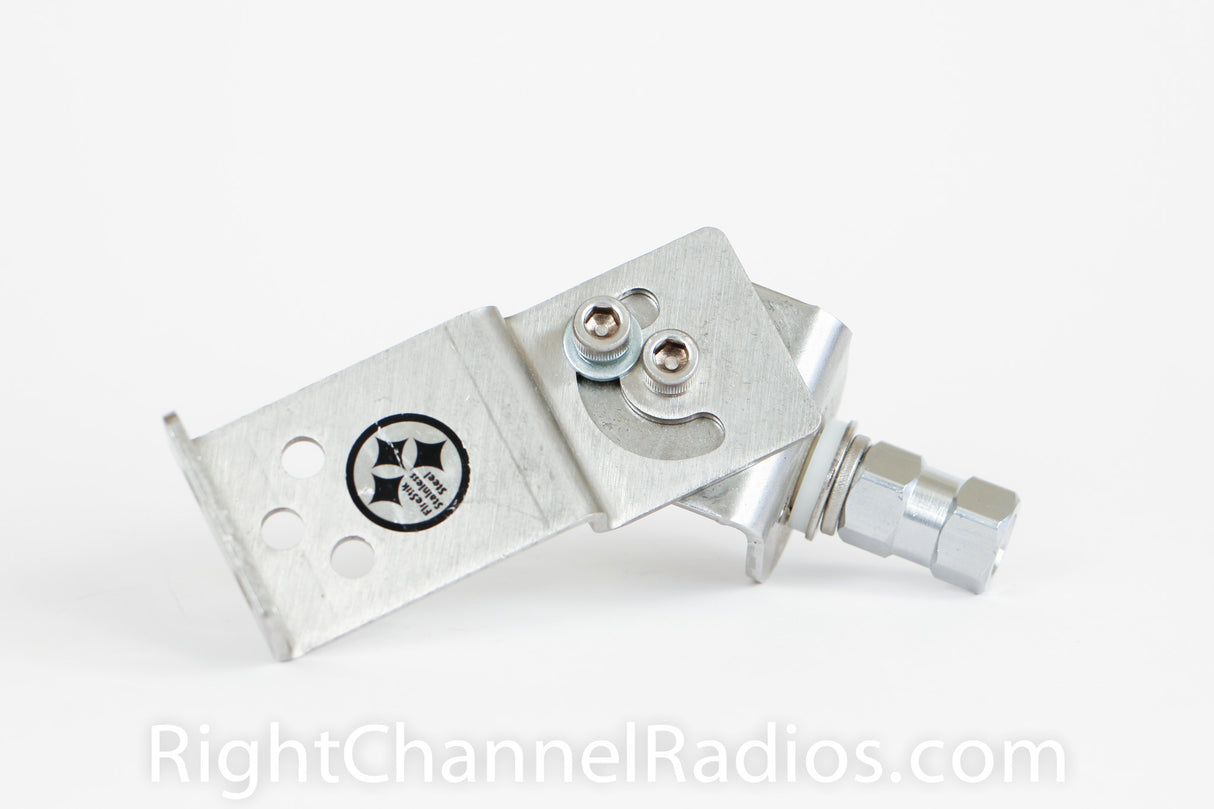

Installation Notes:	Designed to mount to a hood or trunk channel. The riser portion of the bracket accommodates channels up to 2" (50mm) deep. Overall, the bracket is 4" (100mm) tall and 2" (50mm) wide. All mounting hardware (also stainless steel) is hidden inside the channel. The mount will bolt to either the bottom or side of the hood channel. Once the mount is installed, you can adjust the angle of the antenna using the mount swivel.
Mount Location:	Hood / Fender, Trunk / Hatch
Stud Type:	PL-259 (Barrel)
Material	Stainless Steel
Product Includes:	Mount and PL-259 stud 18' of RG8X, 95% shielded coax

Details

Workman Universal CB Antenna Mount: Although designed specifically for hood, trunk and hatchback applications, these mounts are versatile enough to mount in a variety of ways. All bracket parts are made of stainless steel. Because the mount is located on the inside channel of your hood, trunk or hatchback, there won't be any visible mounting holes. These mounts are fully adjustable to compensate for sloping angles, such as those found on minivan hoods and hatchback doors. Mounts have a full 180 degrees of adjustment and can be mounted on either side of the vehicle. For use with antennas up to 4' tall. The riser portion of the bracket accommodates channels up to 2" (50mm) deep. Overall, the bracket is 4" (100mm) tall and 2" (50mm) wide. All mounting hardware (also stainless steel) is hidden inside the channel.
