Firestik Side Mount CB Antenna Kit

$32.95

  • A unique mount that installs to any flat surface and conceals all wiring inside vehicle's chassis

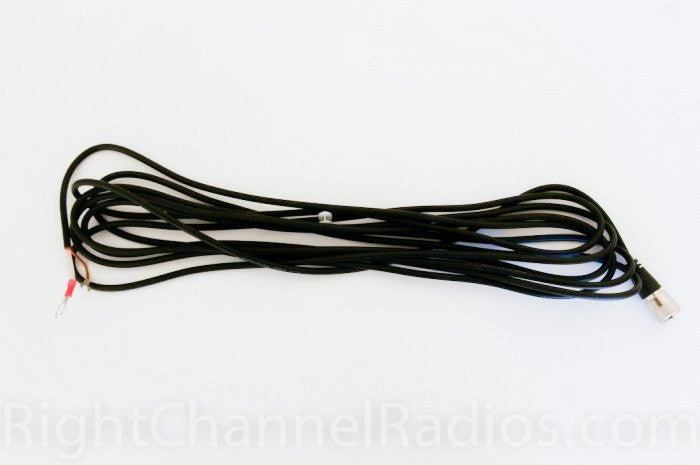

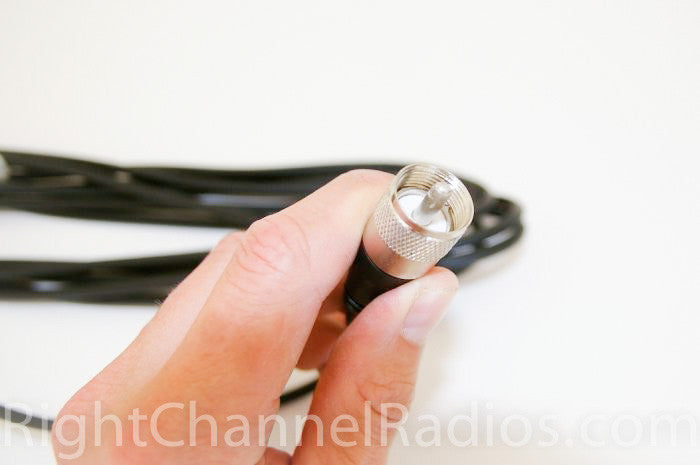

  • Kit includes 18' of coax with terminal ends
  • CheckFree 3 Day Shipping for Orders $75+
  • CheckIncludes Installation Resources
  • CheckHassle-Free Returns

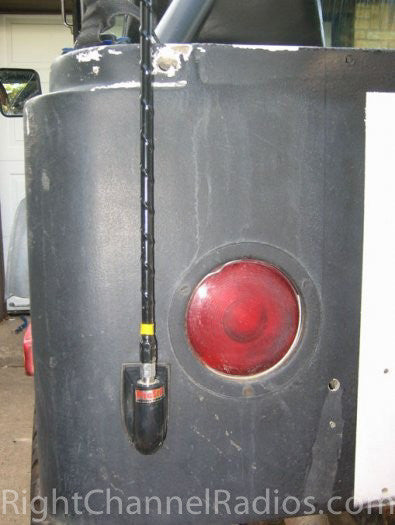

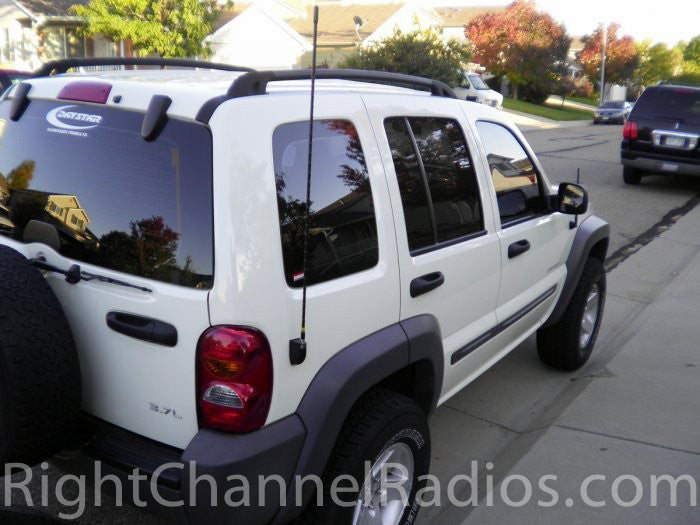

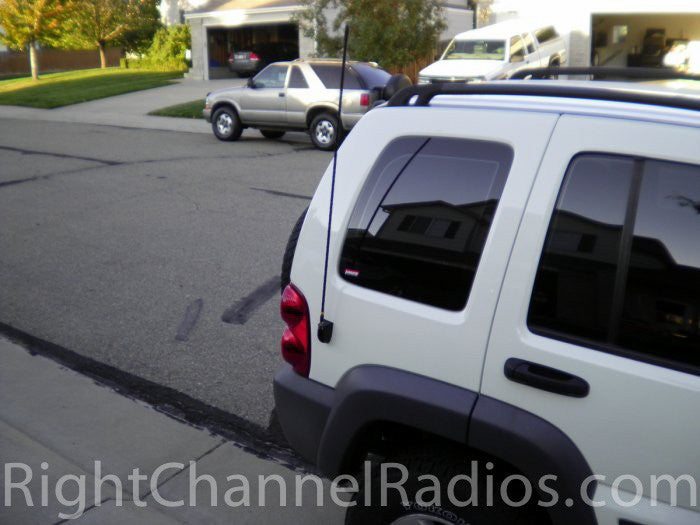

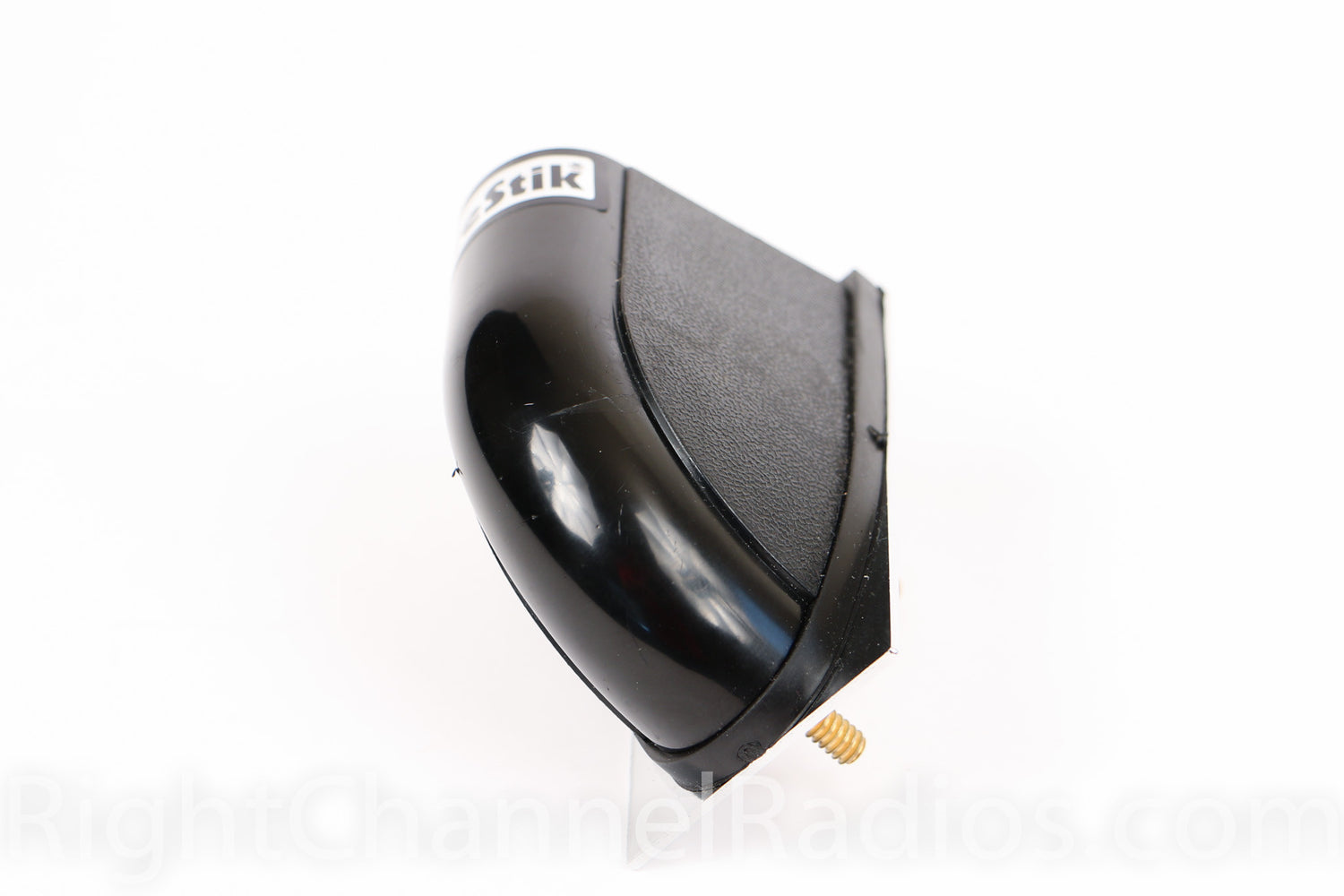

This side mount kit is perfect for achieving a clean, professional CB antenna installation. The molded "teardrop" mount from Firestik installs to any flat surface, concealing all wiring on the inside of the vehicle's chassis. This kit also includes 18' of Firestik quality, 95% shielded coax cable with terminal ends. You'll be hard-pressed to find a cleaner-looking installation solution than this side mount from Firestik!

Model / SKU:Firestik MK-M2

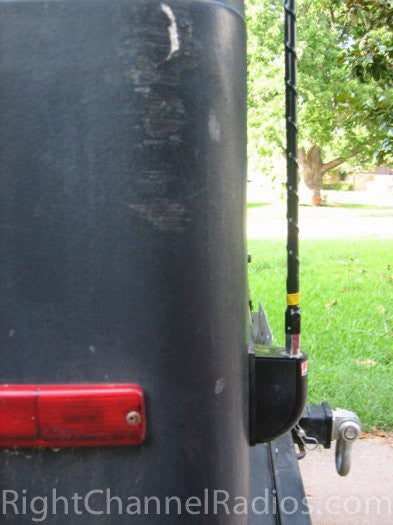

Recommended for:Mounting on vertical surfaces. This kits hides the mounting bracket to achieve a seamless factory look. Recommended for standard fiberglass antennas up to 3' or lightweight fiberglass antennas (like the Firestik Firefly) up to 4'.
Compatible with:
All CB radios, and all fiberglass and center-load antennas that use a standard 3/8" x 24 threaded base.
Installation Notes:

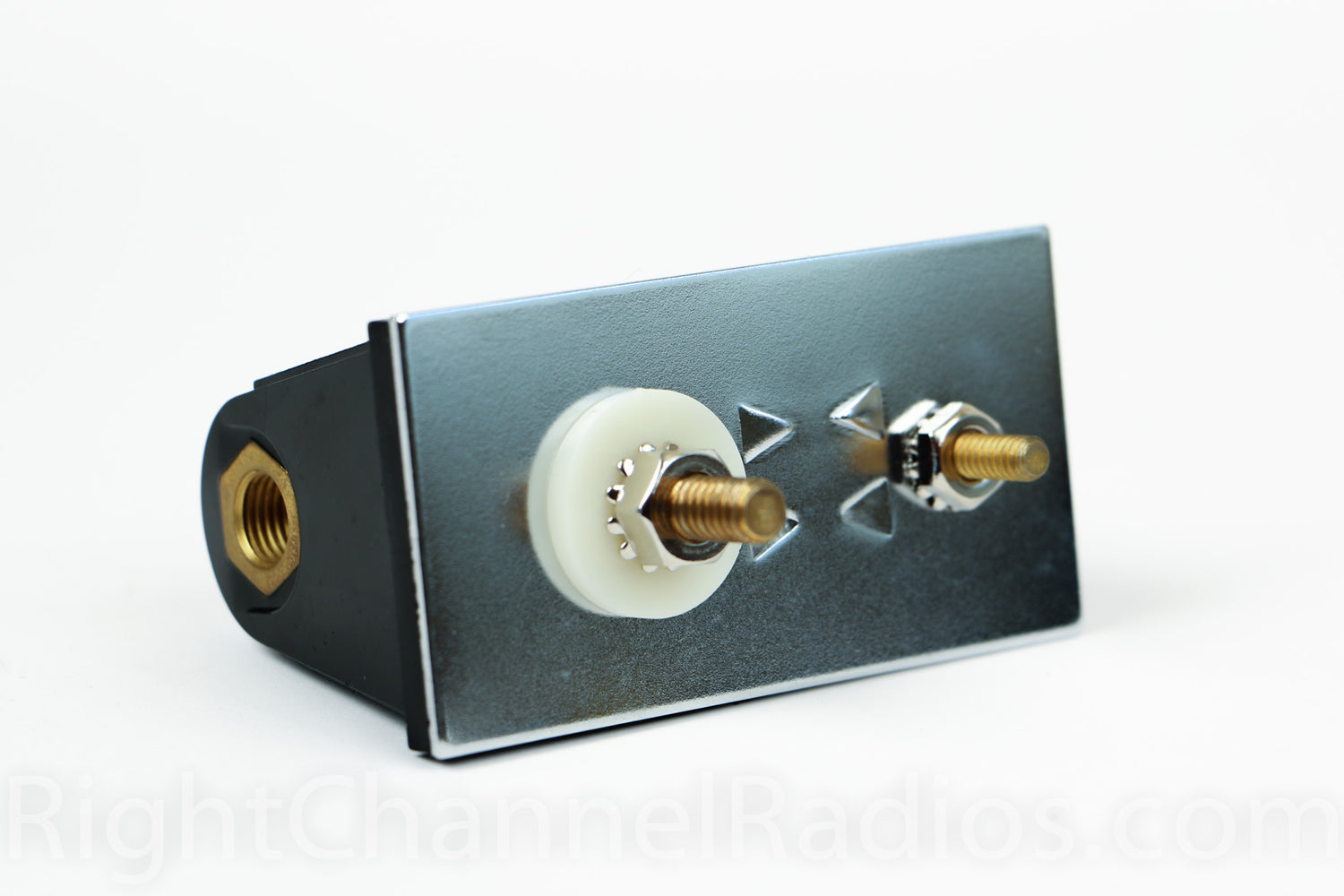

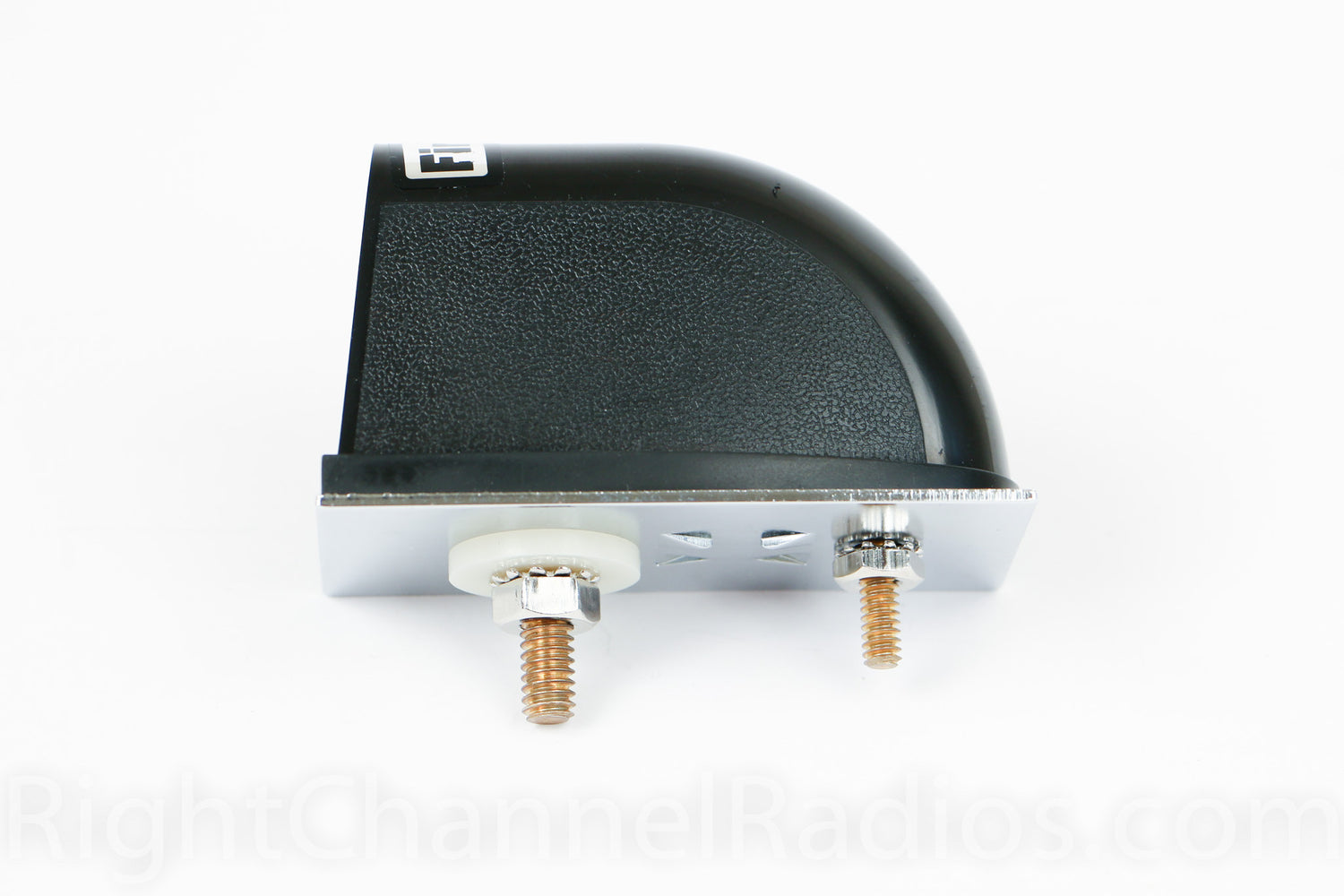

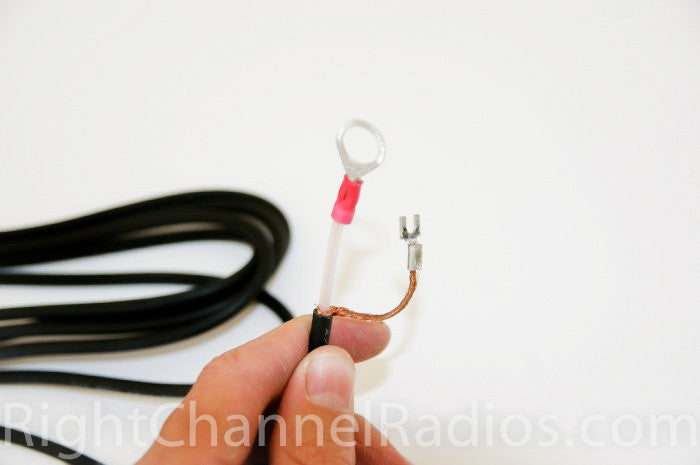

The molded side mount has two mounting bolts. You'll need to drill two holes (5mm and 10mm) and attach the bolts from inside the vehicle. The mount can be mounted to surfaces up to 3/10" thick. The included terminal-style coax attaches to the mount from inside the vehicle, creating a clean, wire-free external appearance.
Mount Location:
Flat Surface (Roof, Bumper)
Stud Type:
Lug (Ring and Terminal)
Material:Other
Product Includes:Firestik M-2 side mount
18' of CB coax cable

Dimensions:

  • Mounting Surface Area: 3.125" (79mm) x 1.675" (43mm)
  • Upper Mounting Hole Diameter: 13/32" (10mm)
  • Lower Mounting Hole Diameter: 13/64" (5mm)
  • Mounting Holes, Center to Center: 1.5" (38mm)
  • Outward Protrusion from Mounting Surface 1.88" (48mm)
  • Maximum Mounting Surface Thickness: .28" (7mm)

Firestik CB Antenna Mounting Kit: If you're looking for a side mount with style, this is the kit up for you. The Firestik mount makes for a smooth, professional CB antenna installation along any vertical surface. When installed, the coax connectors are concealed on the inside of the vehicle (requires one 13/32" (10mm) and one 13/64" (5mm) mounting hole). We recommend using the mount with Firestik or Firestik II antennas up to 3' (92cm), or FireFly and RoadPal antennas up to 4' (1.2m). The actual mounting surface is approximately 3.125" (79mm) x 1.675" (43mm). Outward protrusion is about 1.875" (48mm). This kit includes a Firestik molded side mount and 18' (5.5m) of professional-grade FireFlex coaxial cable. Mount includes rubber gasket and steel backer plate.
